SONY CD AMP.

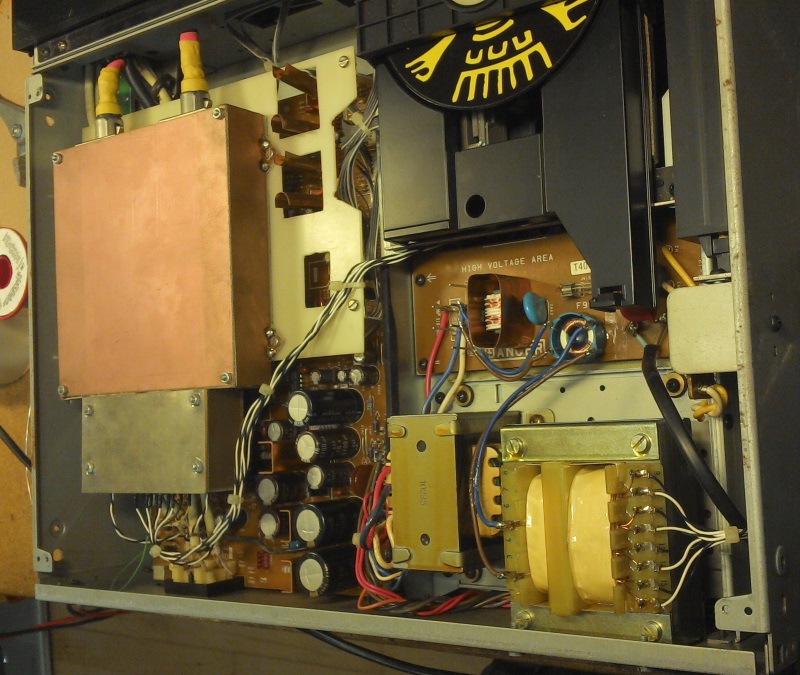

inside_top_all

My SONY CD player had a noicy audio amplifier made of normal dual op-amps
So I found the best available single op-amps that was on the marked in 1993
The audio alias filter schematics is the same, but now all is DC-coubled and all powersupplys to each op-amps
has seperate decoupling capacitors and series resistors.

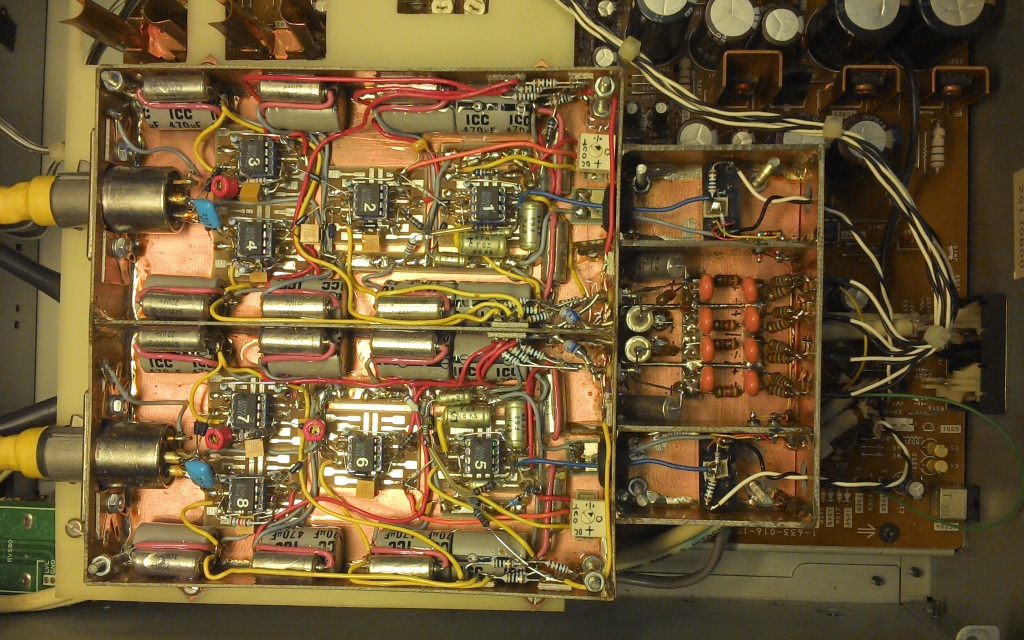

amp_close

op-amps are mounted inside the PCB box, and all powersupply filters in another box, and regulators outside box..
This box is then mounted inside the Sony CD player

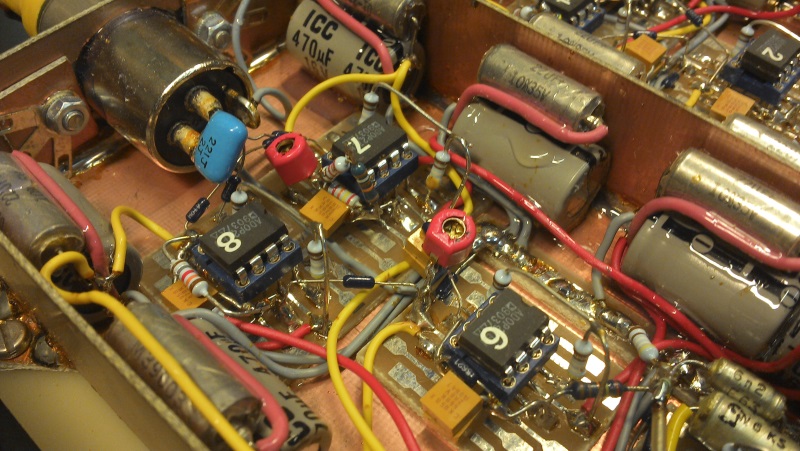

opamp_details

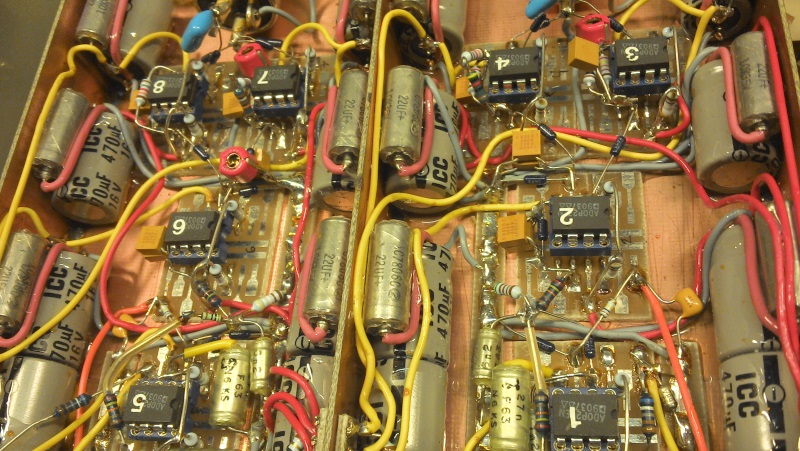

opamps

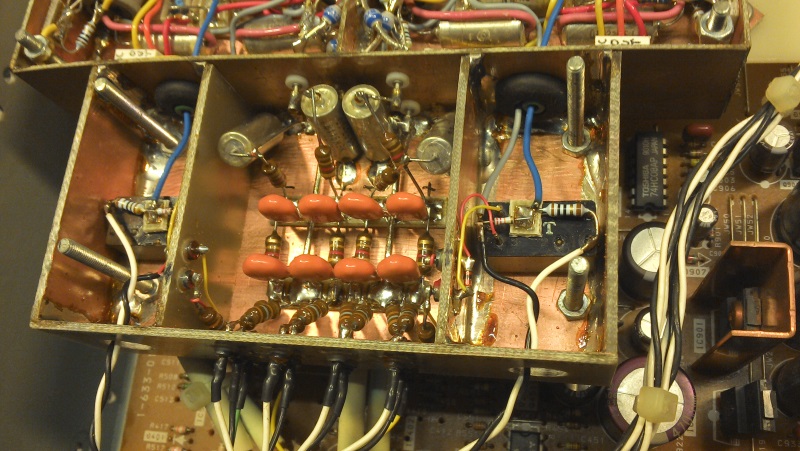

audio psu filter and mute relays

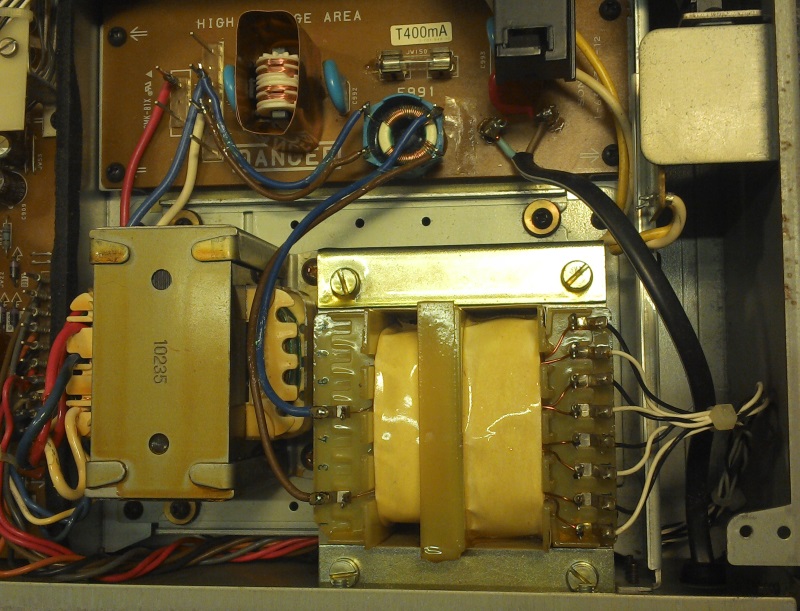

An extra transformator with 4 separate windings

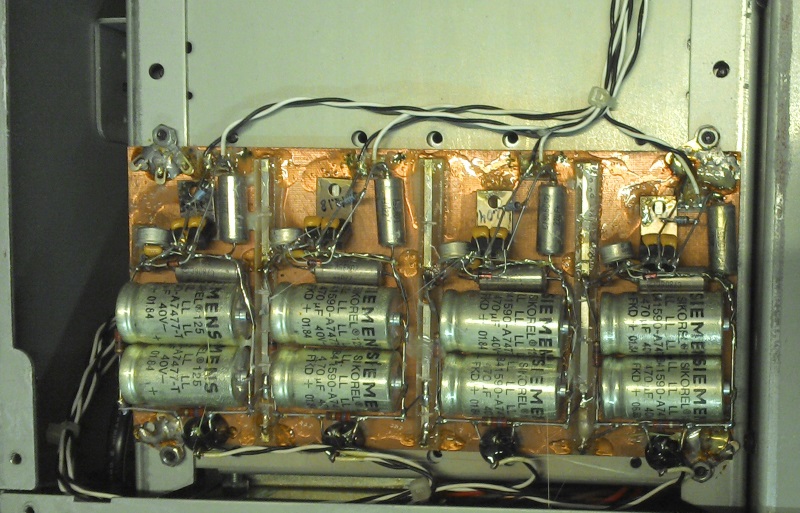

bottom_regulators

The power supply +-12 volt is double regulated for each channel, so a total of 8 regulators is used
