ISA card, Parallel, Serial, Midi, DTMF

The main ISA address IO decoding and data latch, was done using a standard card that I have also developed for I.T.E.
The Parallel In/out port is done using a 8255
Serial and Midi is done at add-on board with 16C550 max232 optocoubler and 4Mhz osc
The two DTMF Decoders MV8870 is ripped for another project of mine.

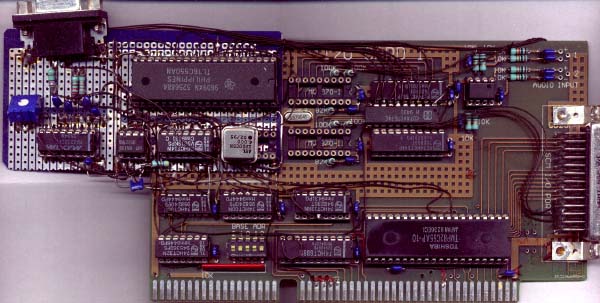

This is the prototype, done in 1996
