MY little Radio Control page
UHF RC long range system
UHF RC system, pictures from customers 2008-2009

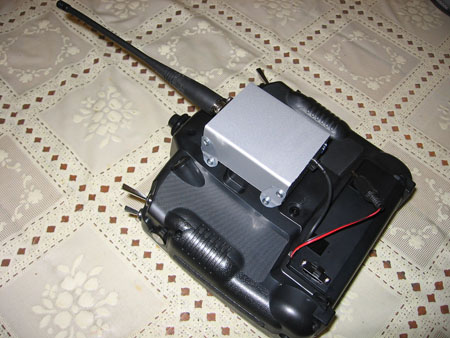

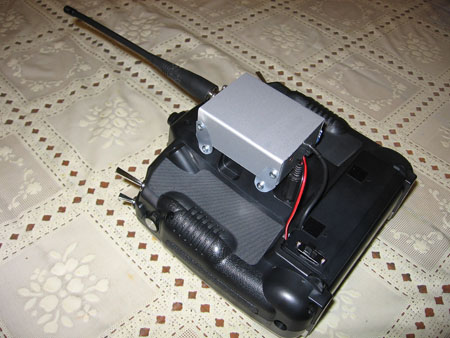

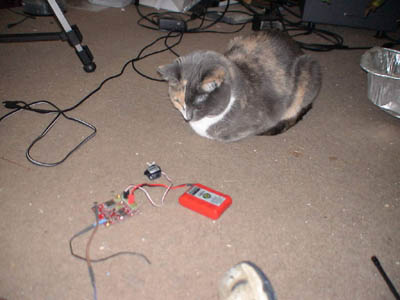

From Carlyle:

--

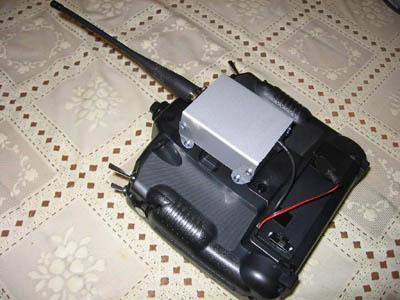

From Execration:

--

From Alastur:

--

From Jmralves:

--

From Wasilla:

--

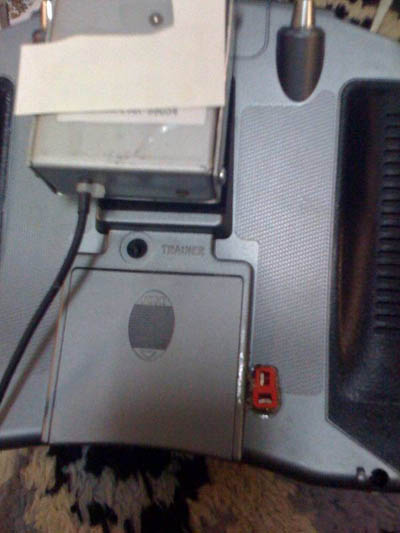

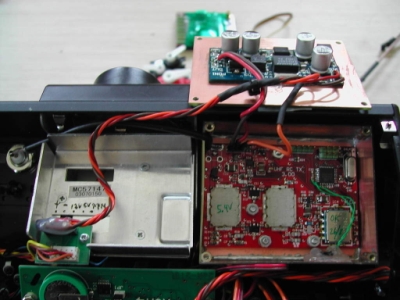

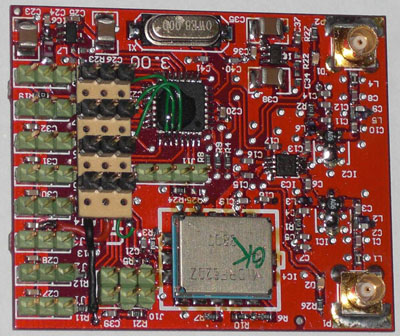

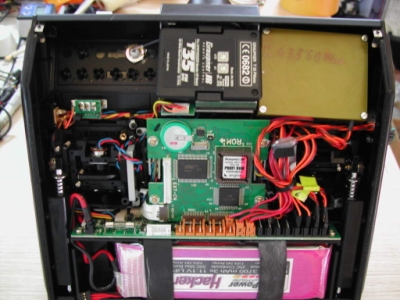

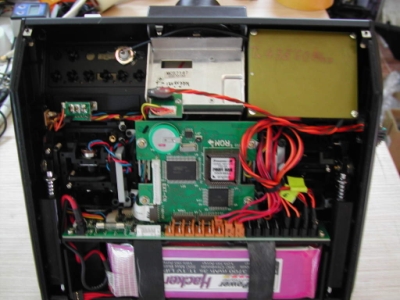

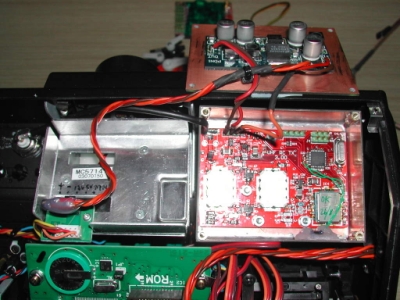

From Amedina:

--

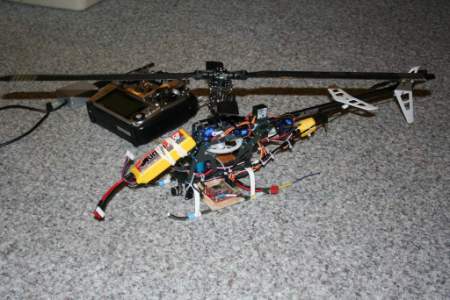

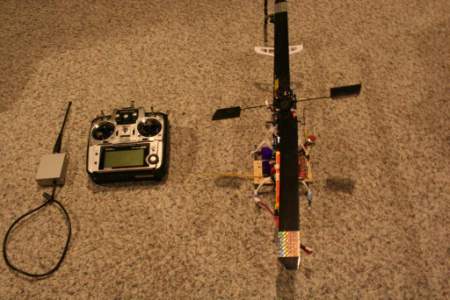

From Pratorian:

--

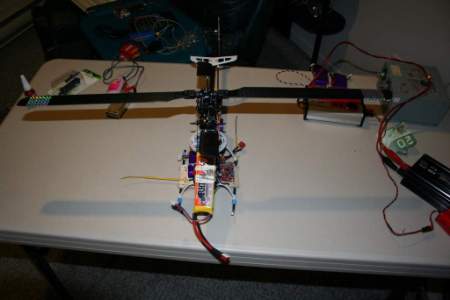

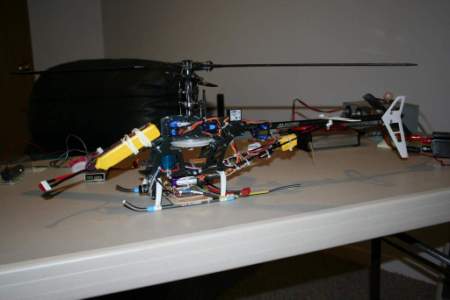

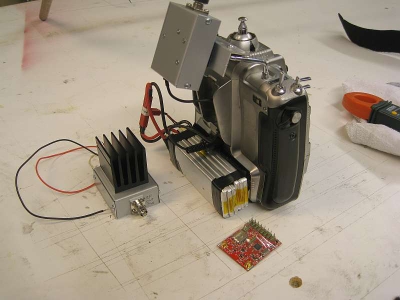

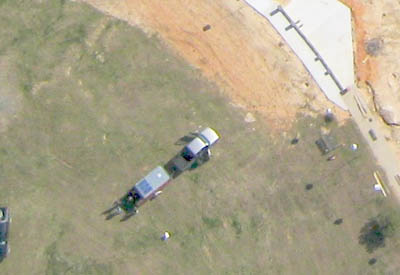

From Eddie:

--

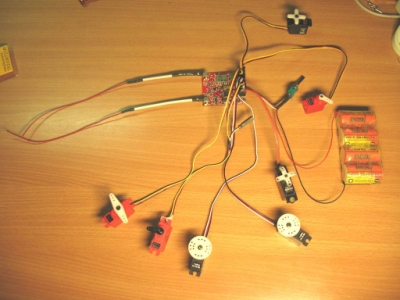

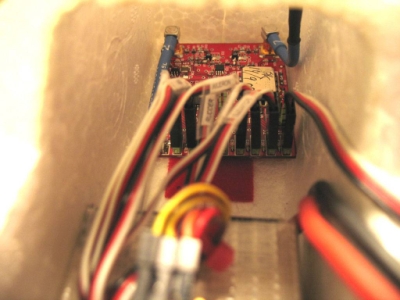

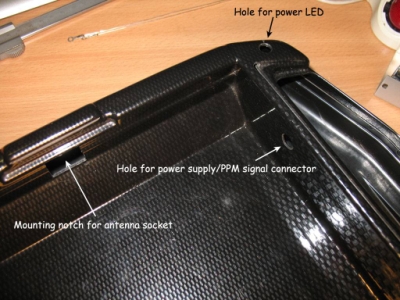

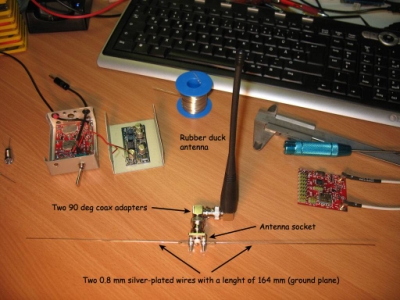

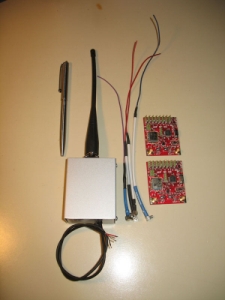

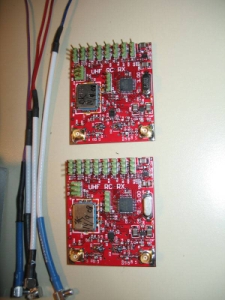

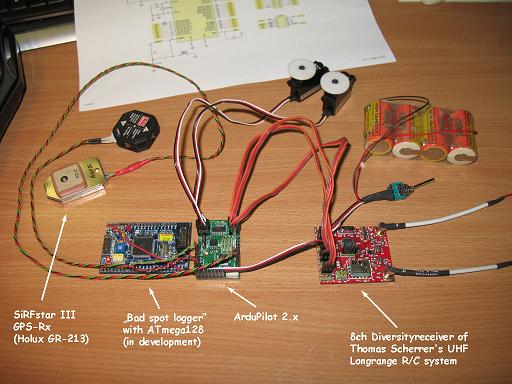

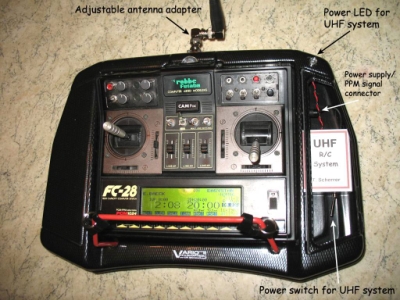

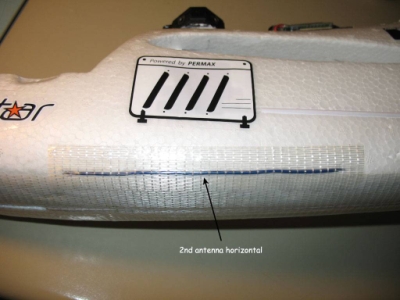

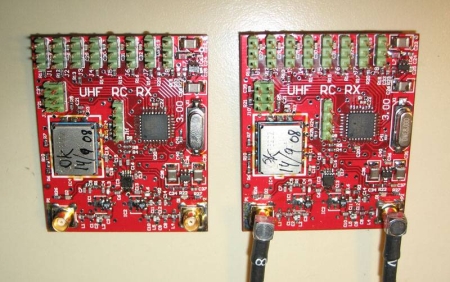

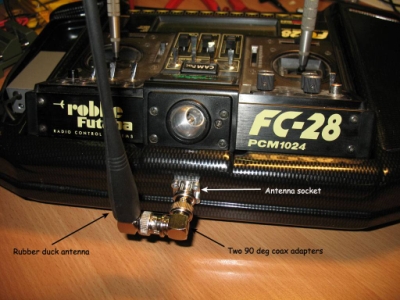

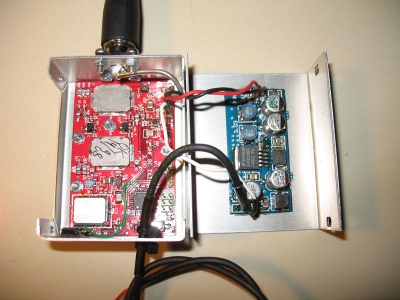

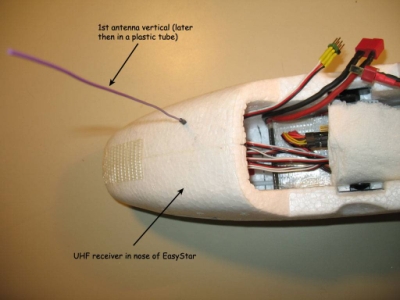

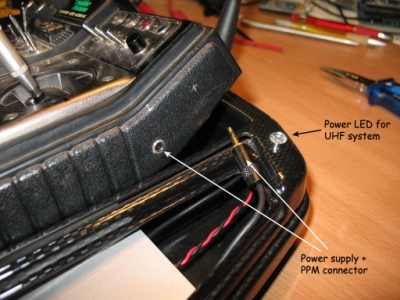

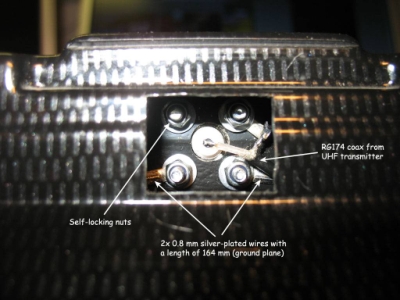

From Erwin/Helitron:

--

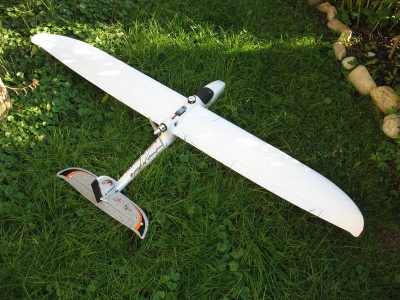

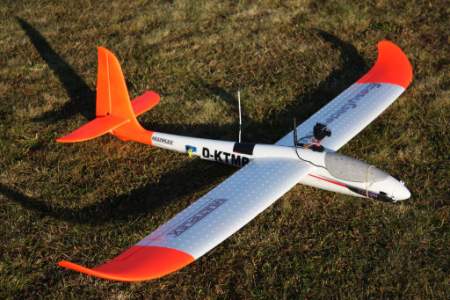

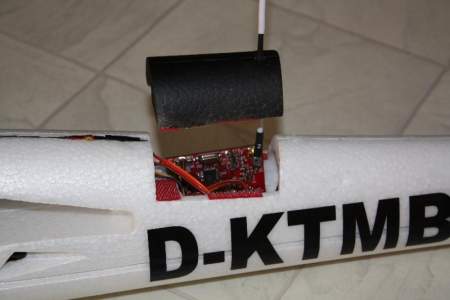

From Mattias:

--

From TEK Turbiasz:

--

From Abraxas Heinz:

--

From Ian J:

--

From David, X9303 Multplex connector adding auto power on and ppm out:

(See post 3259 for more)
the two red wires go straight tru, and there is offcourse a hole in them and connected to the fet,
the fet is a low ohm value P-MOS FET, logic level gate drive type,
any type will do. then a 10K resistor over gate-source to keep it off,
and a diode to pull down the ON system to the radio, orange wire
back side of a 5 pin DIN:
RED 1 charge input.
YELL 4 ppm out to LRS.
RED 2 power out to LRS.
ORANGE 5 connect to 3 to turn on.
BLUE 3 GROUND to LRS and to charge cable
the 3-5 connection is made in the male din connector wired to the LRS, so when plugged all go on,
and unit go into student mode due to the diode, the other pictures show the other ends of wires.

--

From Blake, X9303 Multplex connector adding auto power on and ppm out:

Exactly same system and same mod as the one david have, but this time TWO fets are used in parallel,
since the new version of LRS TX can output raw 2W, more input supply power is offcourse also needed.


When running in "normal" mode, the 3.3V regulator gets quite hot this is fixed with this switcher, almost loss less.

--

From David, RX 8ch to 10ch mod and DEANS power for large plane

From David, plane and ground station

From David, All equipment full test install simulation !

From David

From David, Big Stick

From David, Super Water Prof Receiver for boat

-----

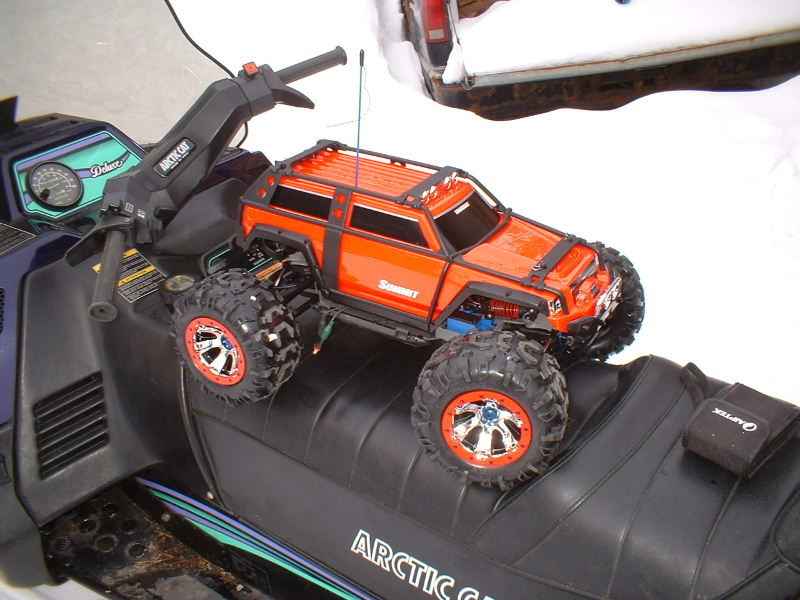

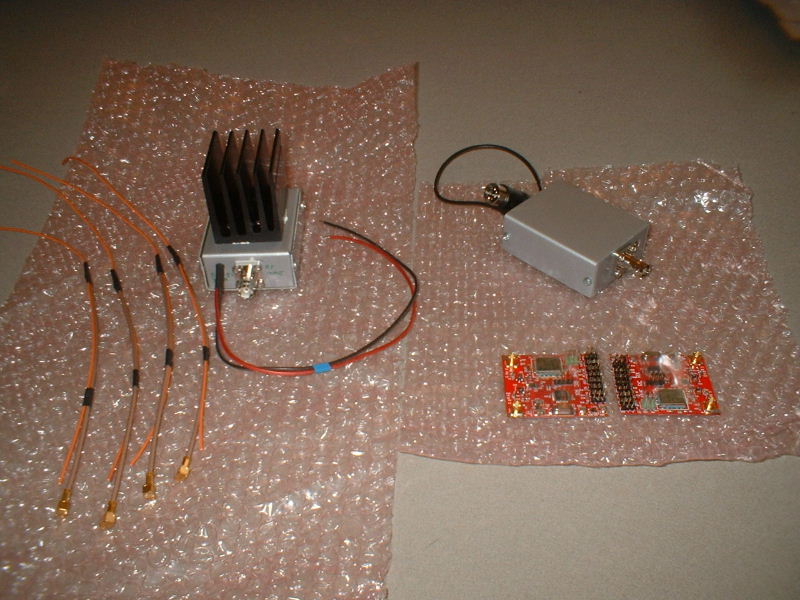

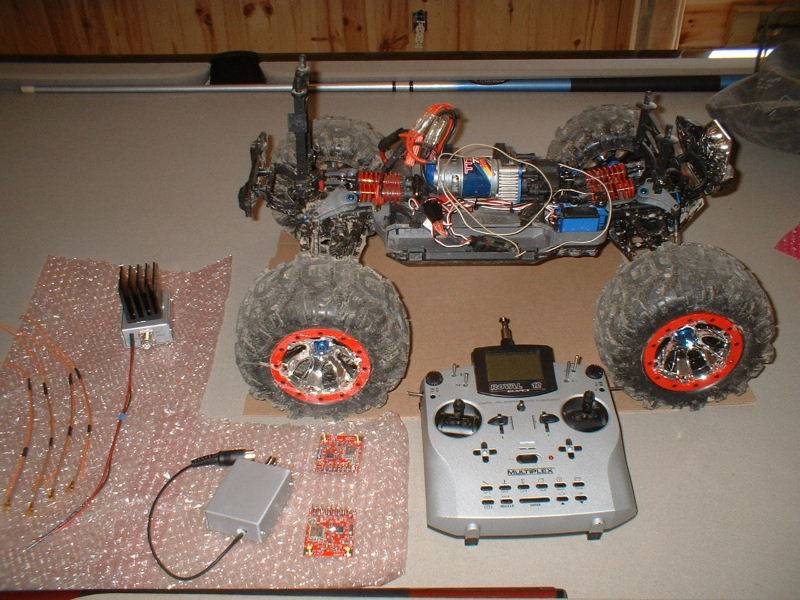

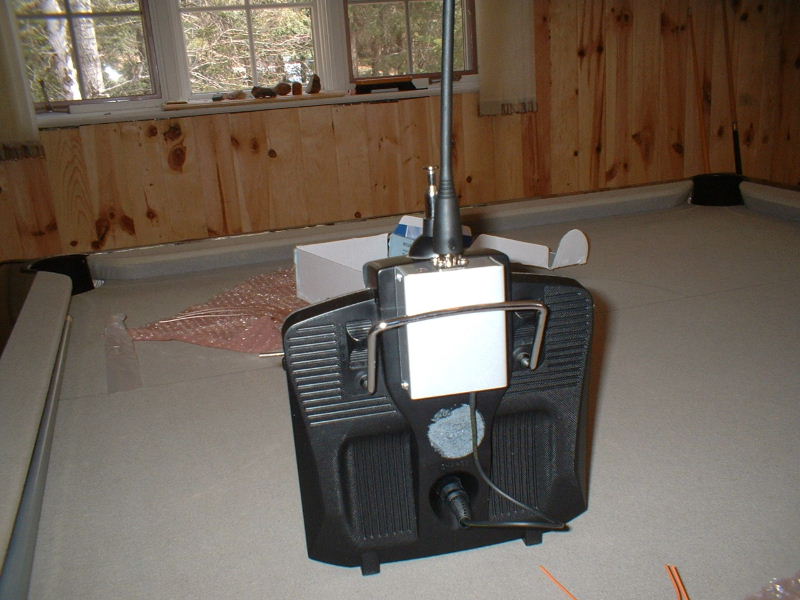

From Spud:

-----

From IslandHog:

-----

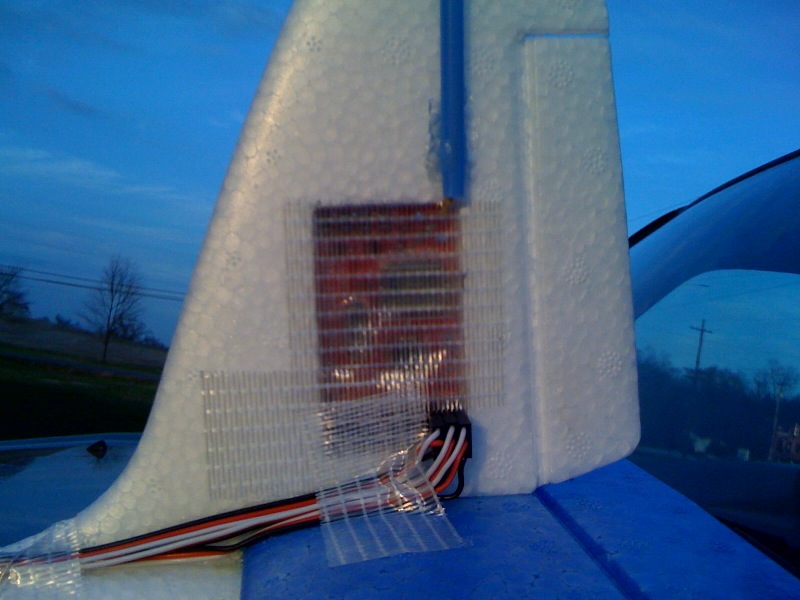

From Bracky:

-----

From CatPart:

-----

From Reinhard:

-----

From Mr.Pibb Tim:

-----

From Gary, modified spectrum with extra powerout connector:

-----

From pit3k:

-----

From saabguyspg:

-----

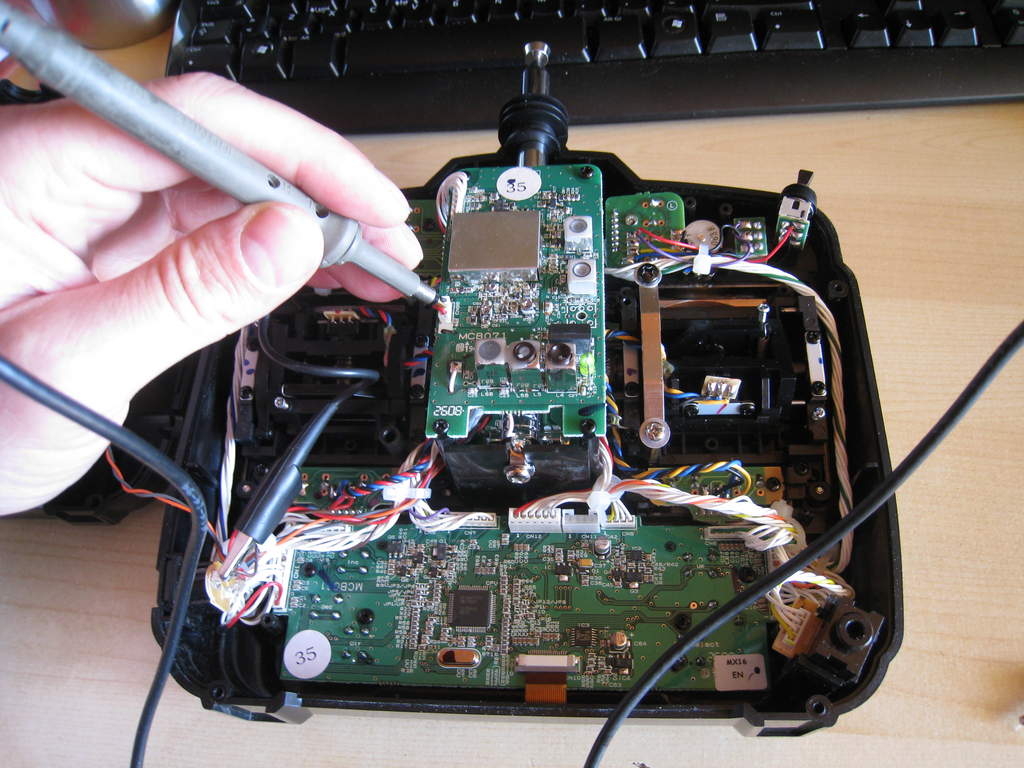

From UFO_MAN Graupner MX16S the 35MHz synth version:

-----

From Robert Graupner MX12 inside install:

-----

From Jon Petter all in one box modification:

-----

From Ross Multiplex Royal Evo modification:

-----

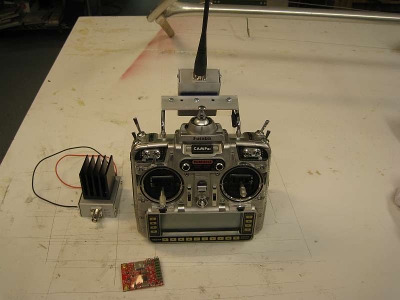

From Bill:

-----

From Moti:

-----

From SoulGlow:

-----

From Boopidoo:

-----

From Dankers:

-----

From Jarda:

-----

From Cadders:

-----

From Aboodys:

-----

From Fluidocs:

-----

From Gary:

-----

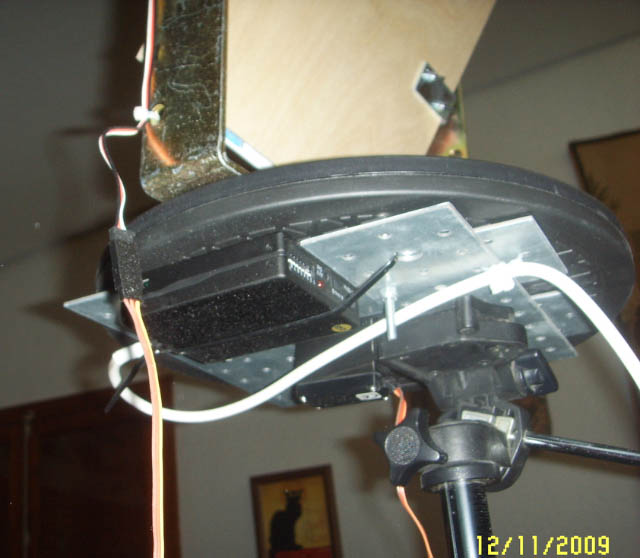

From Iceberg:

-----
