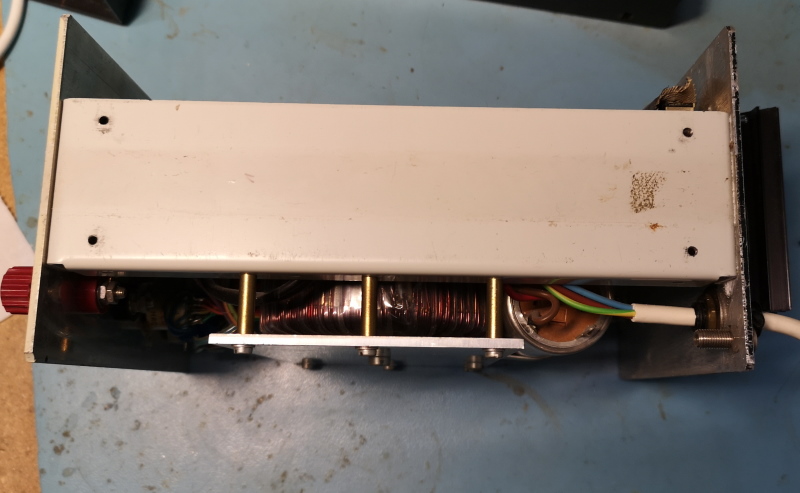

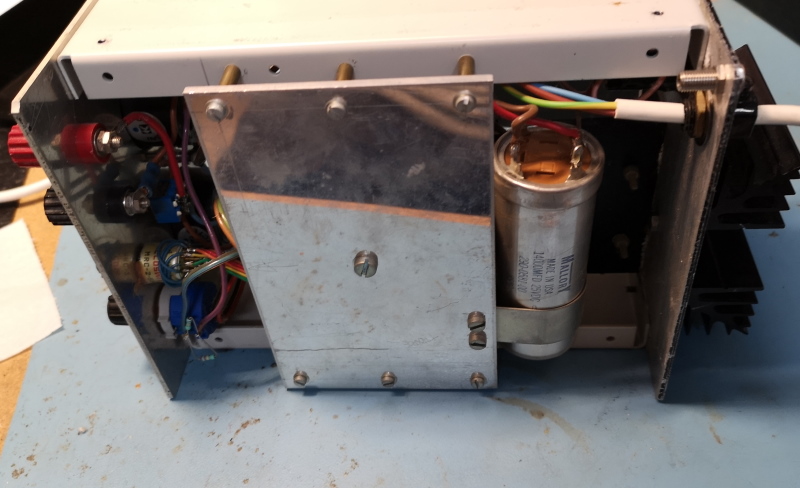

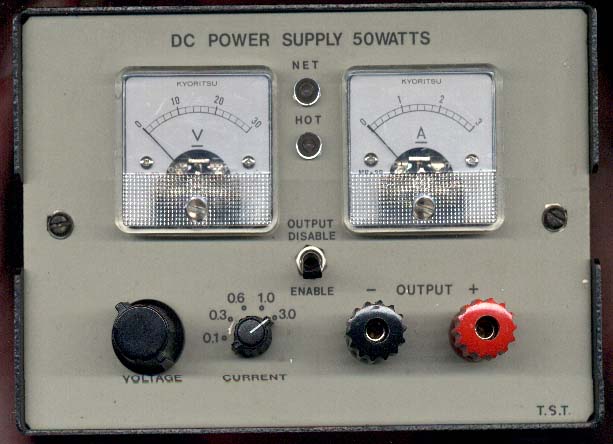

This DC Power Supply was build many years ago by me and my father, 1982

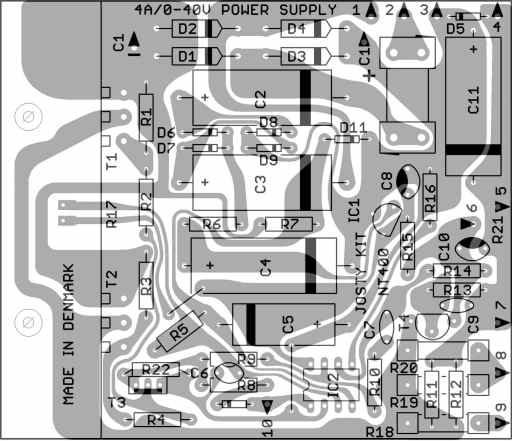

it's a josty-kit NT400 and was a 12 years birthday present to me, this one really started my interest into electronics

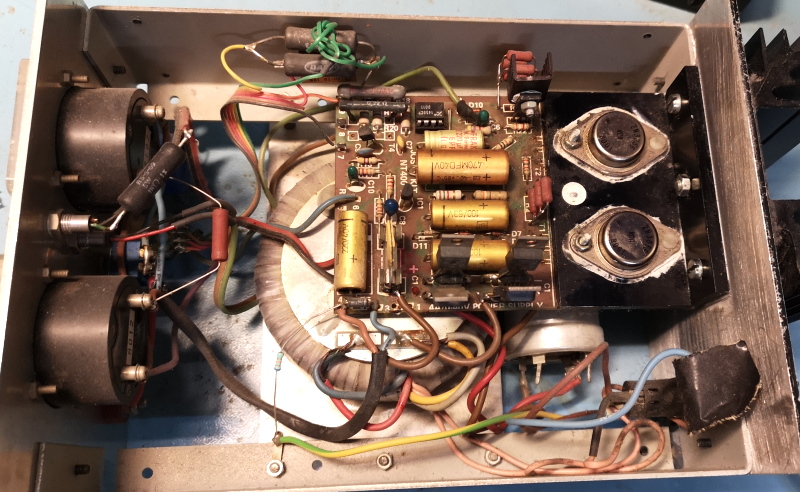

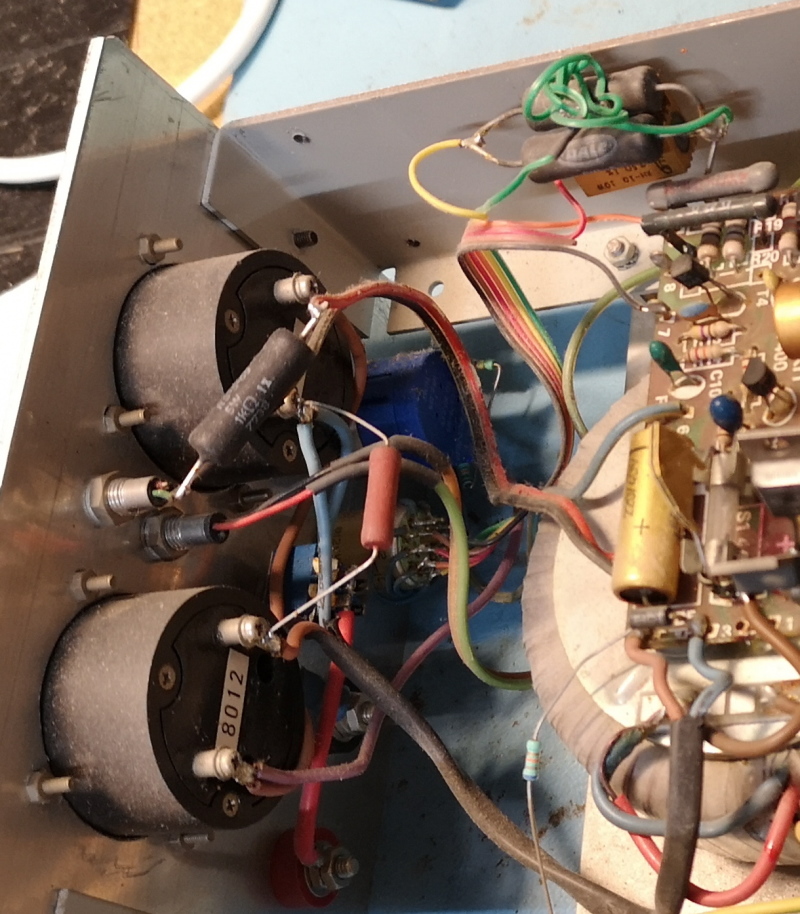

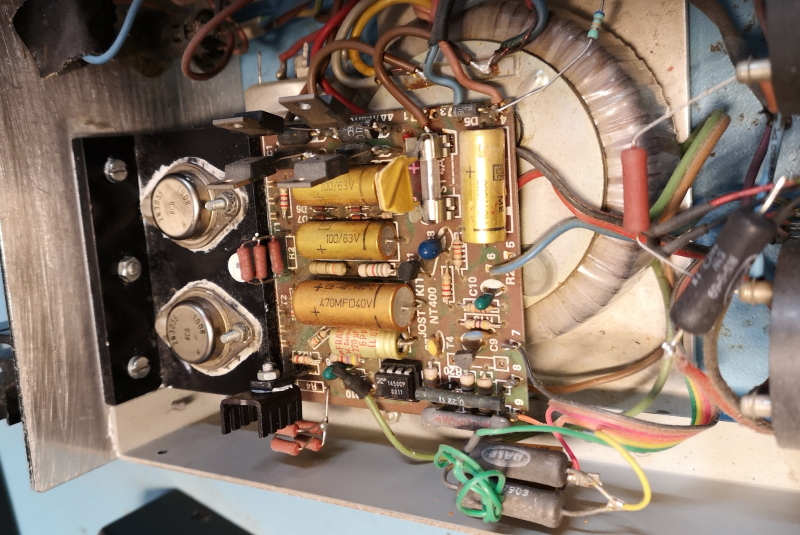

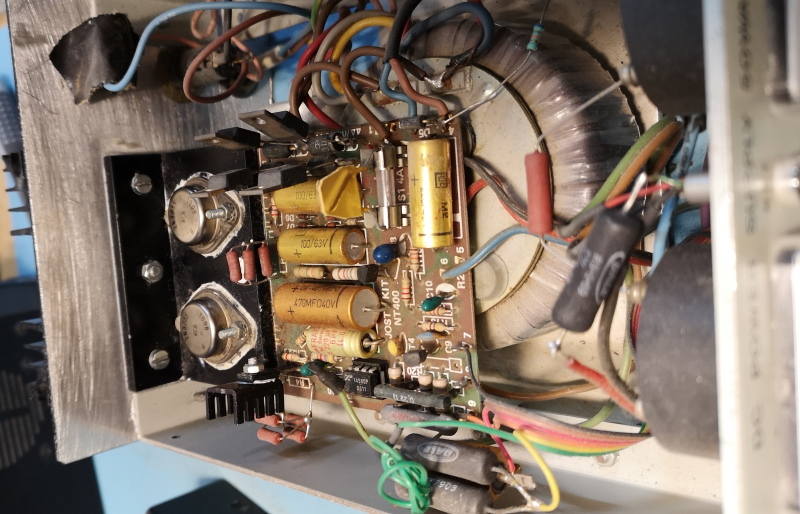

I have modifyed it many times since to improve performance, add features, like the 5 position current limitor and

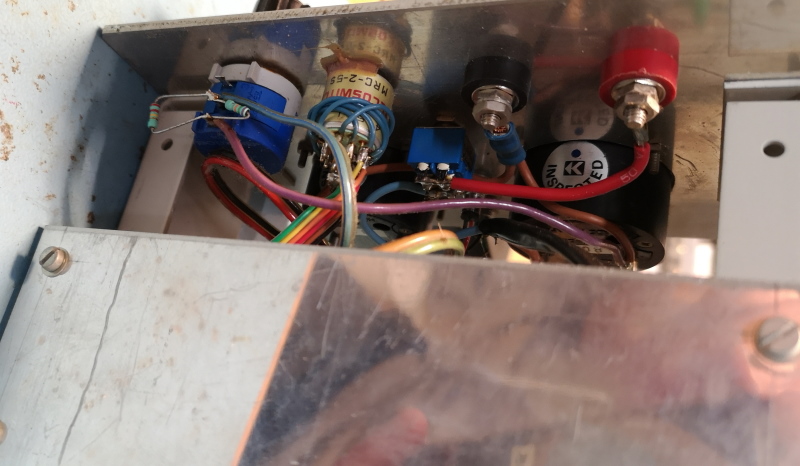

The output enable makes it much better to work with, instead of taking the plugs out and in again all day, it's better to opperate the switch
The Amp readout goes only to 3 amps, but it can give up to 5 amps.
I'm sorry that the picture is a bit distorted, but it's not easy to hold it perfectly still in a scanner.

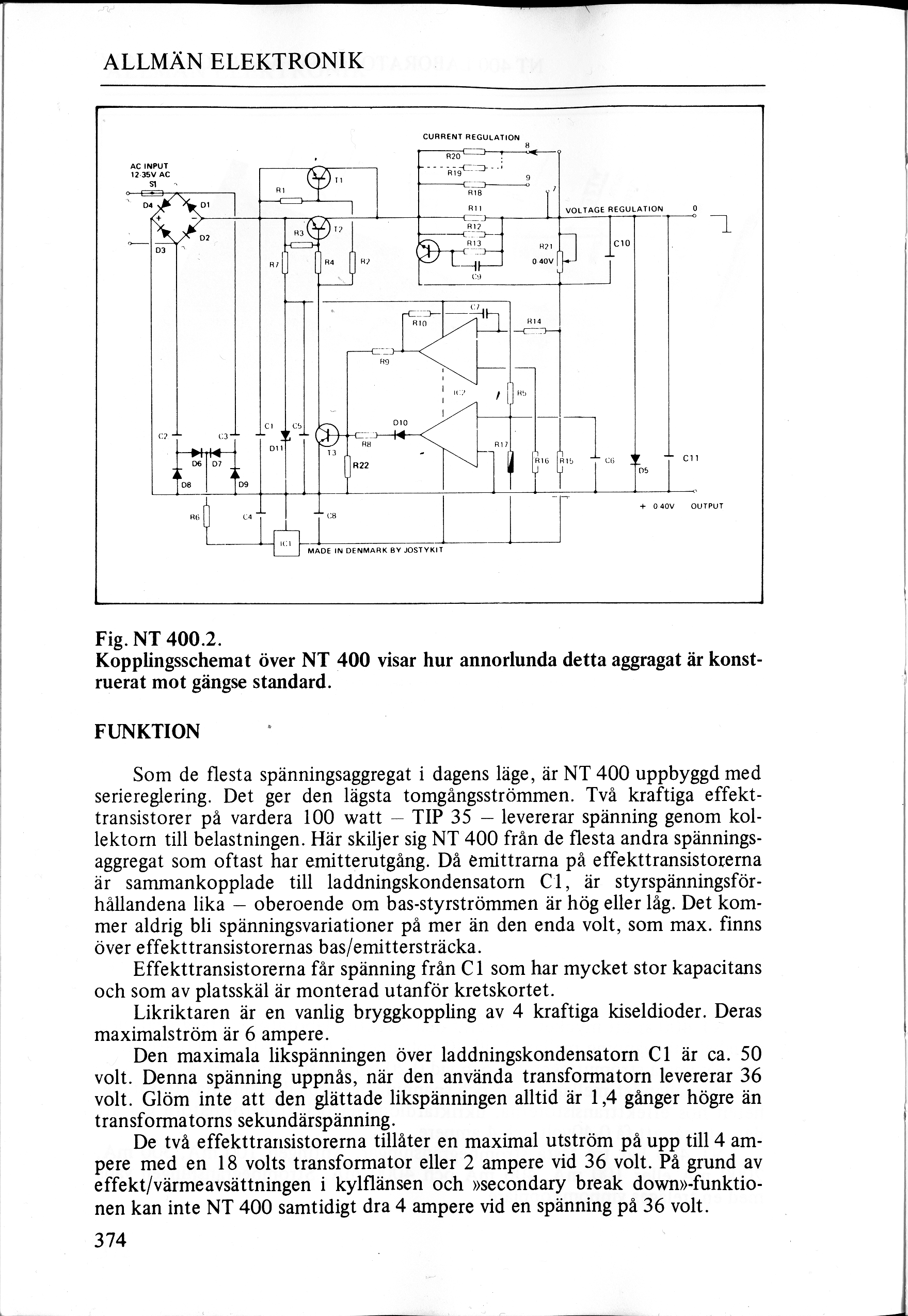

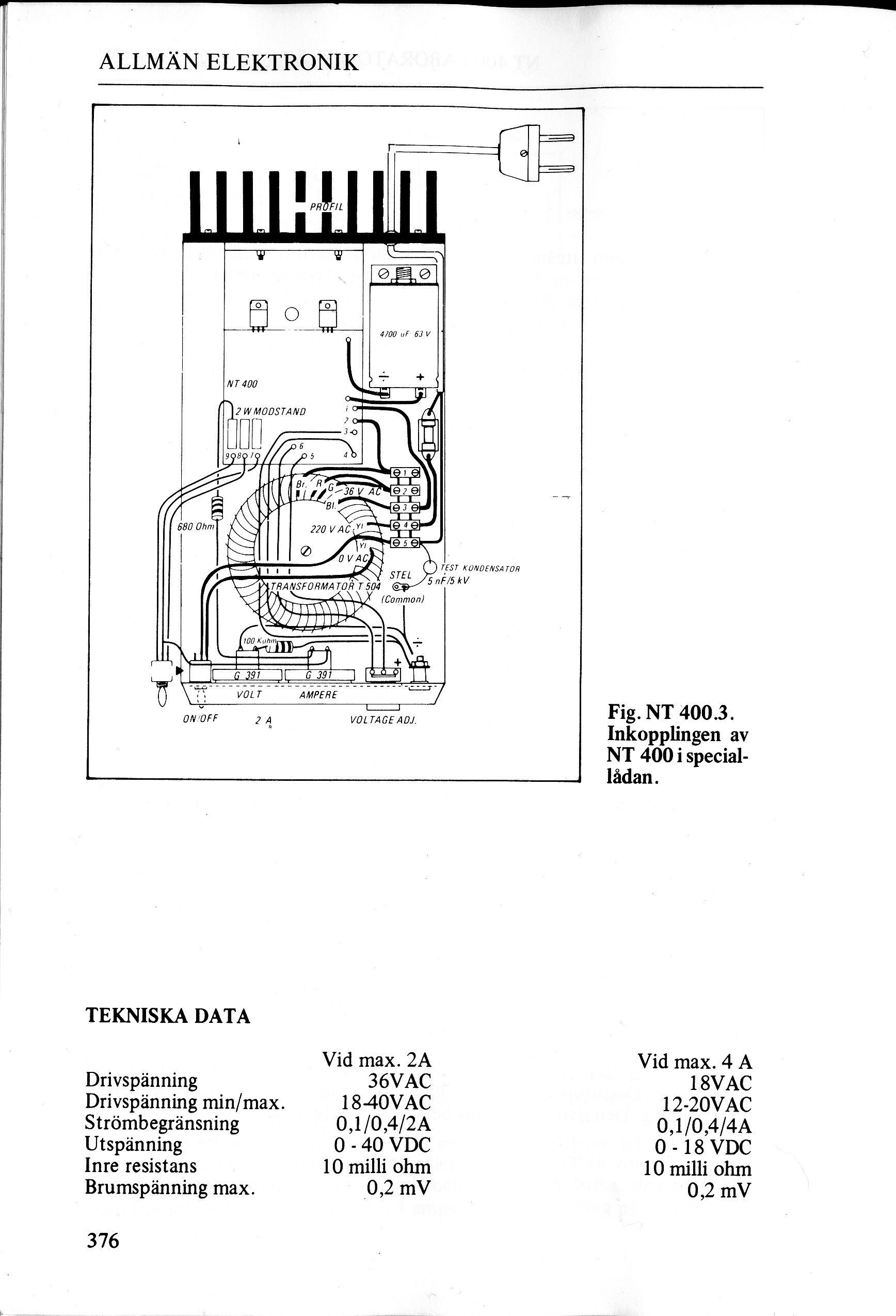

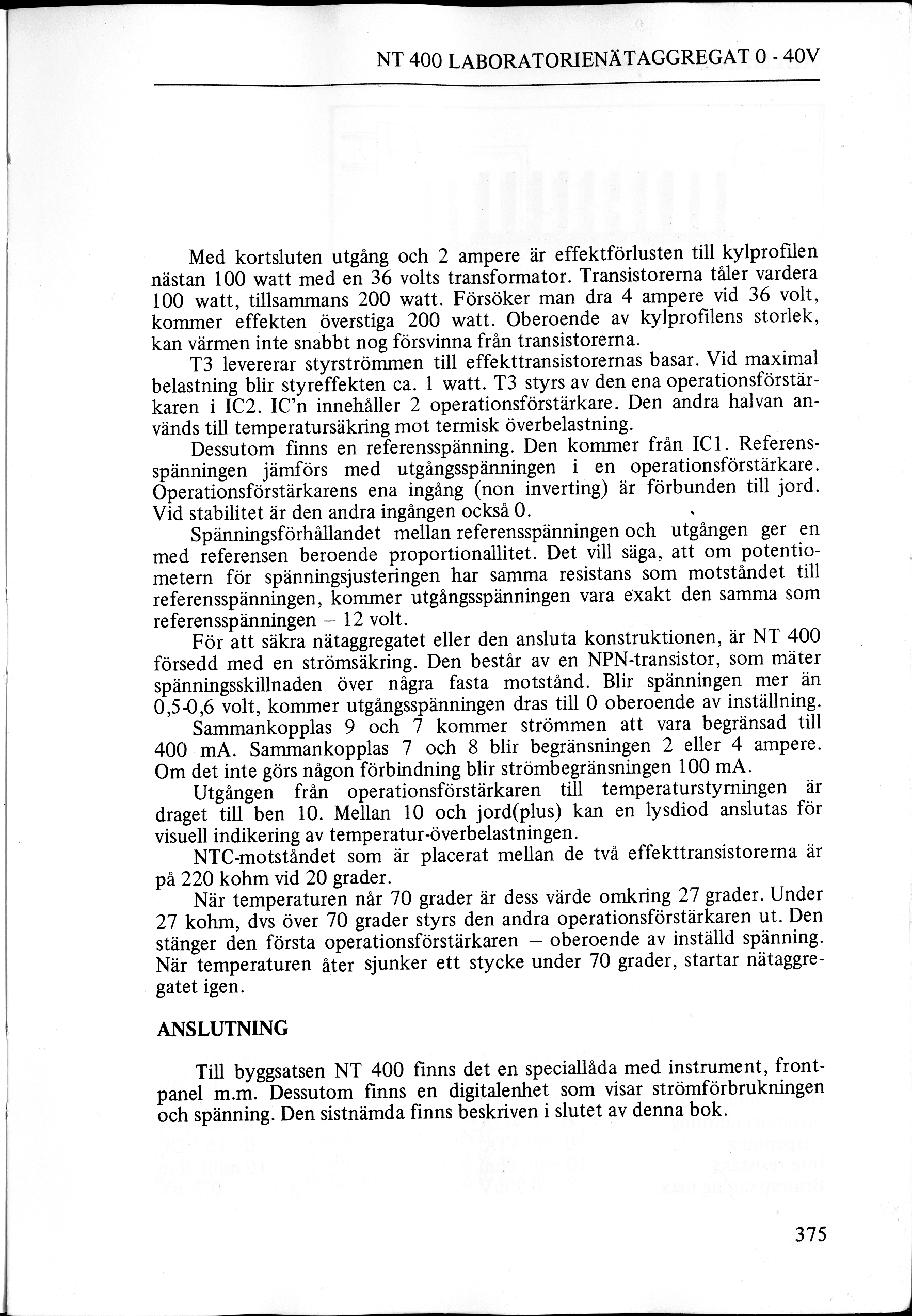

jostykit-nt400-manual-pdf LOW RES

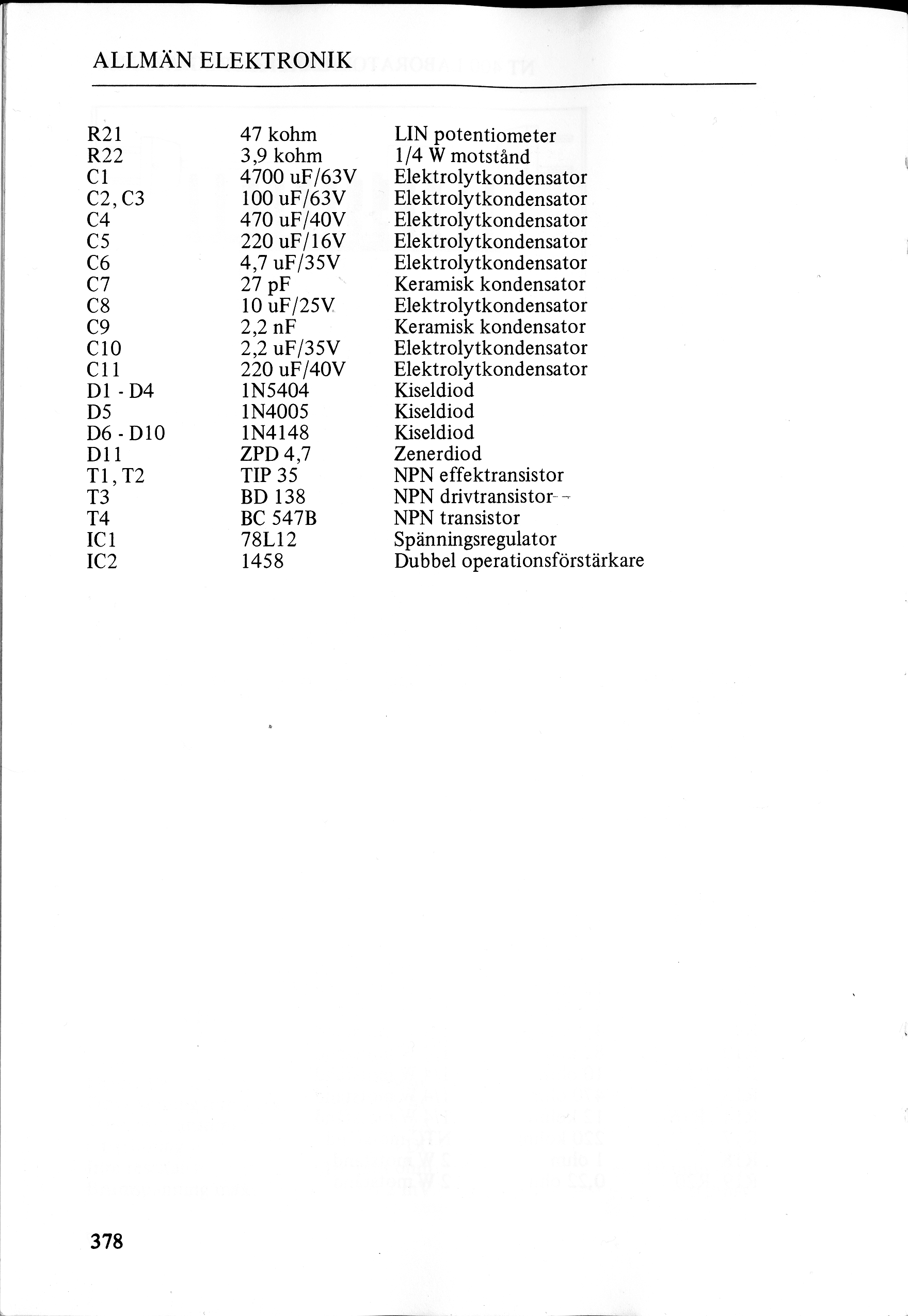

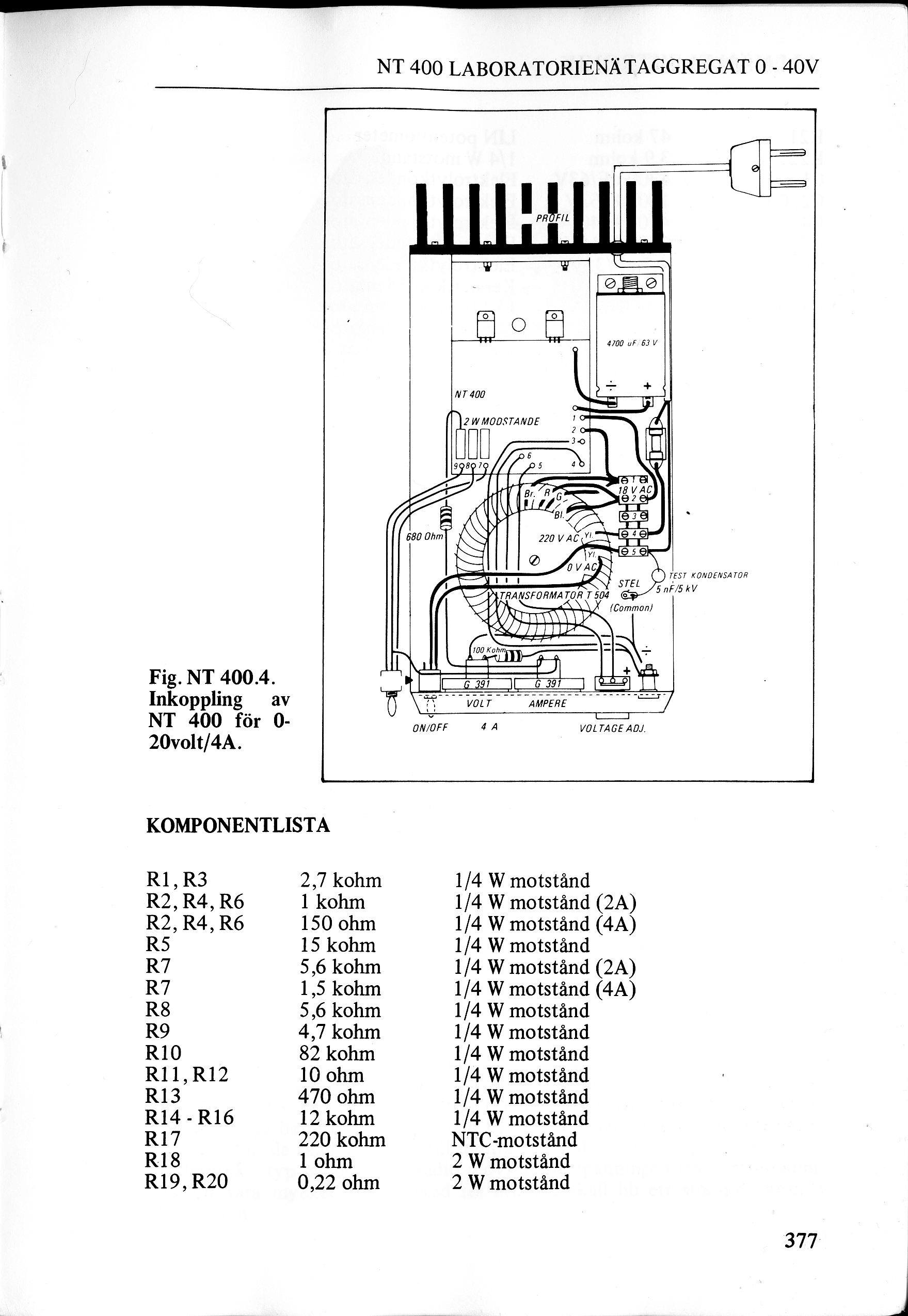

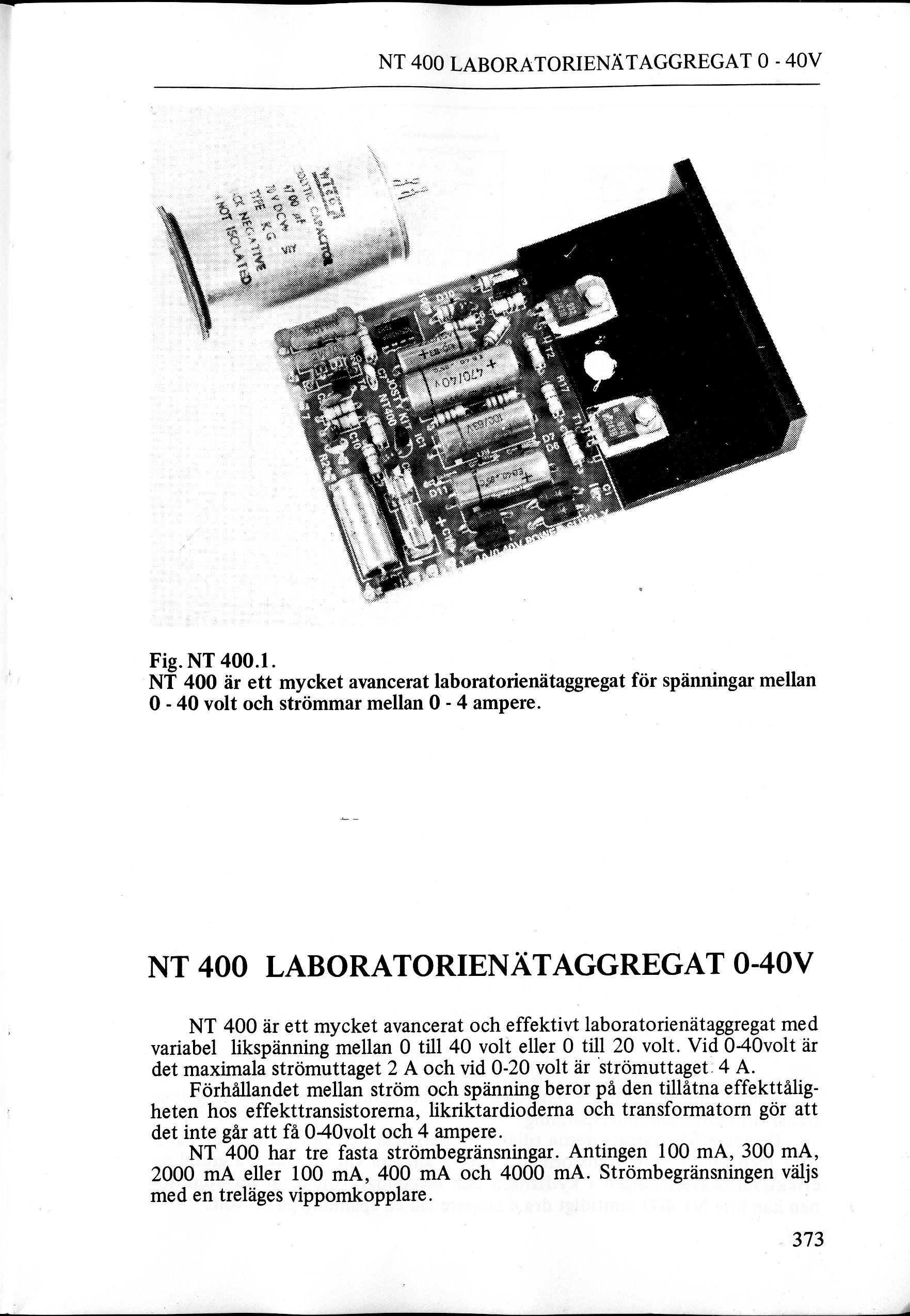

NT400-byggevejledning.pdf GREAT QUALITY

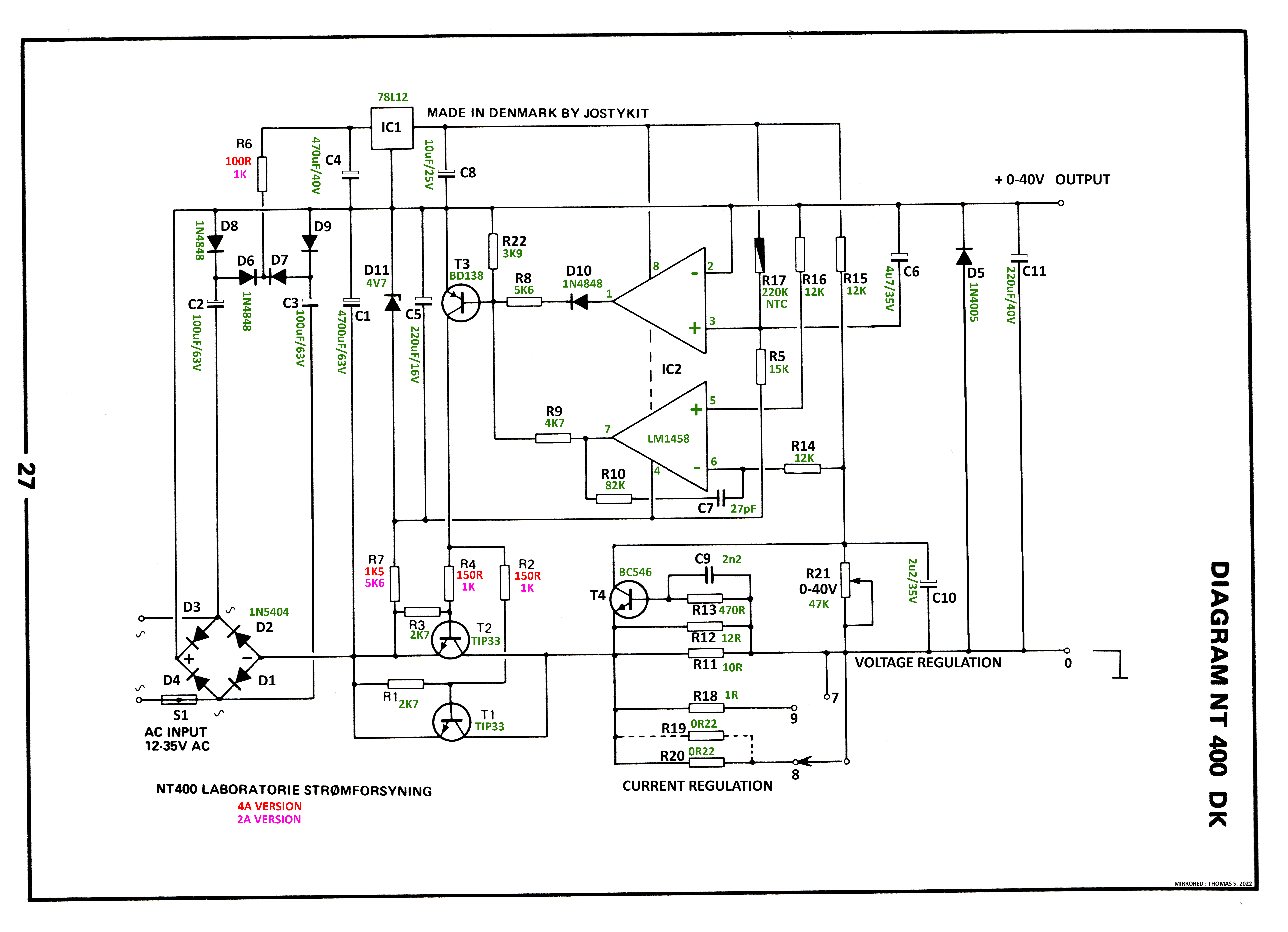

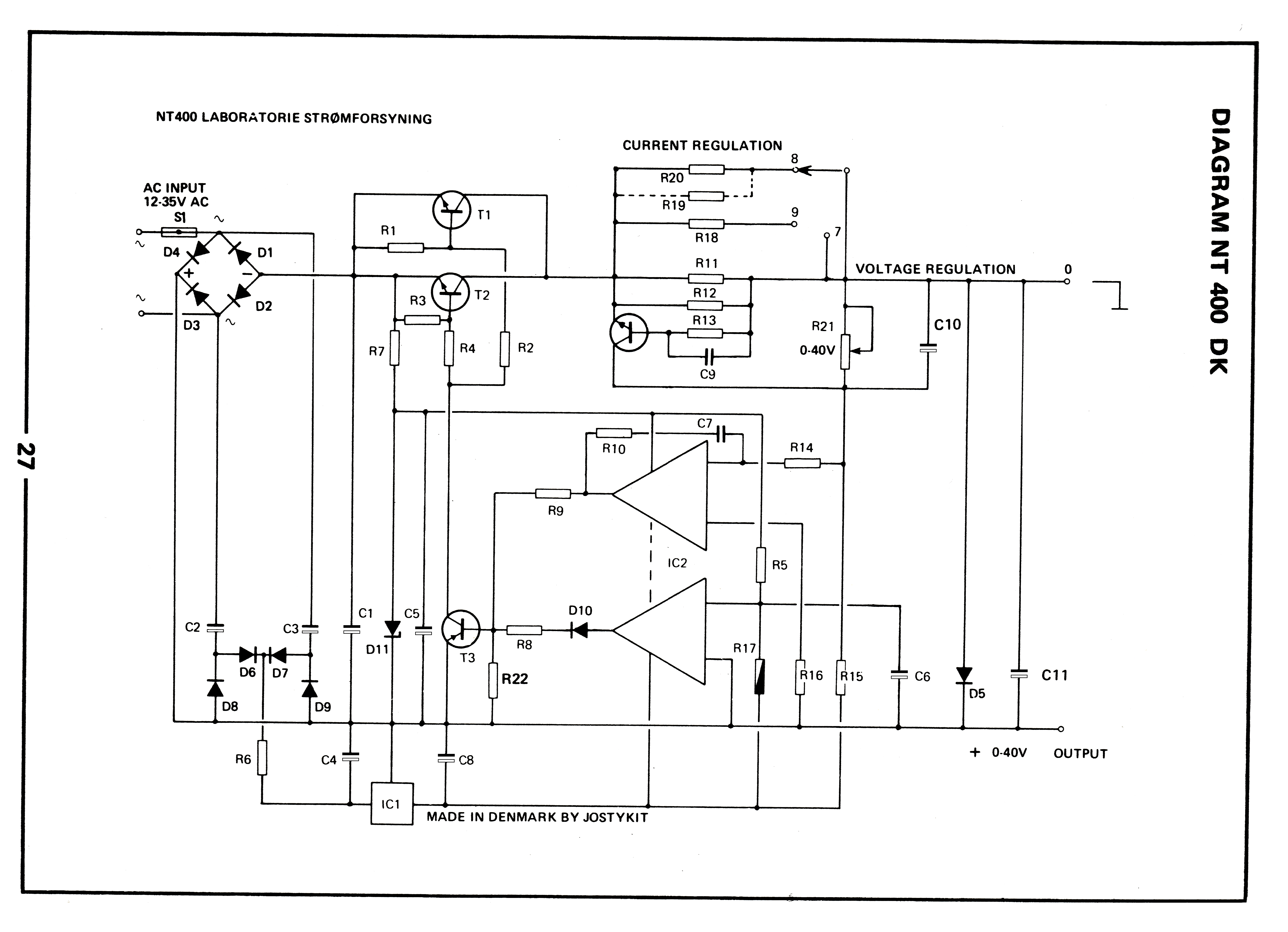

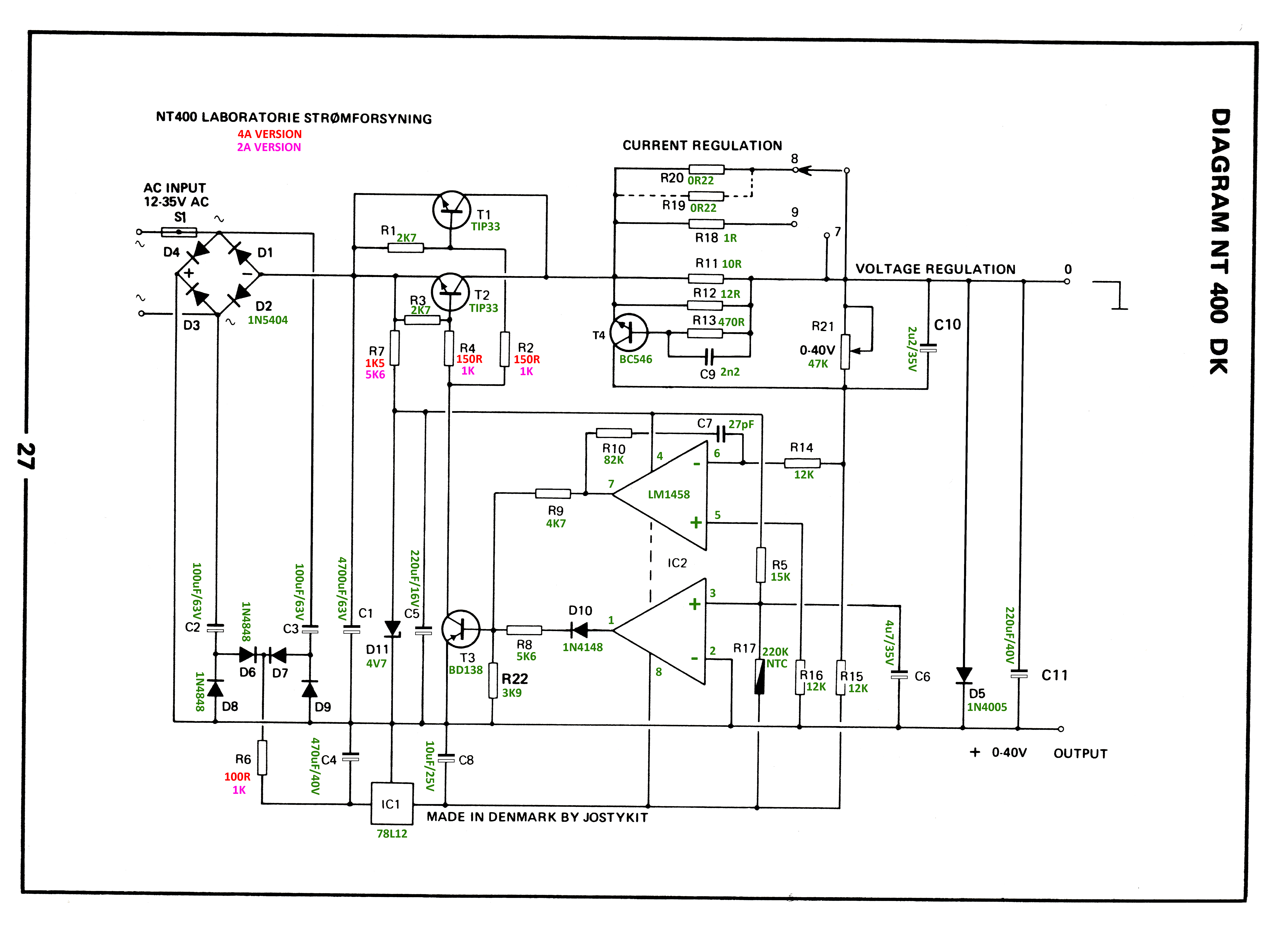

nt400_schematic_scan_fix_comp_values_flipped.png NOW EASY TO UNDERSTAND

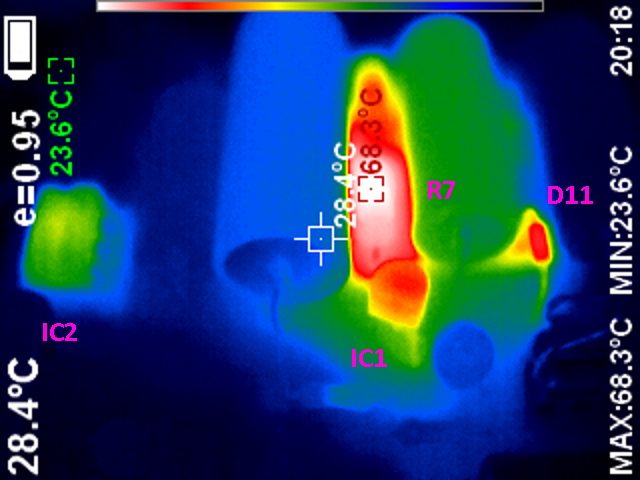

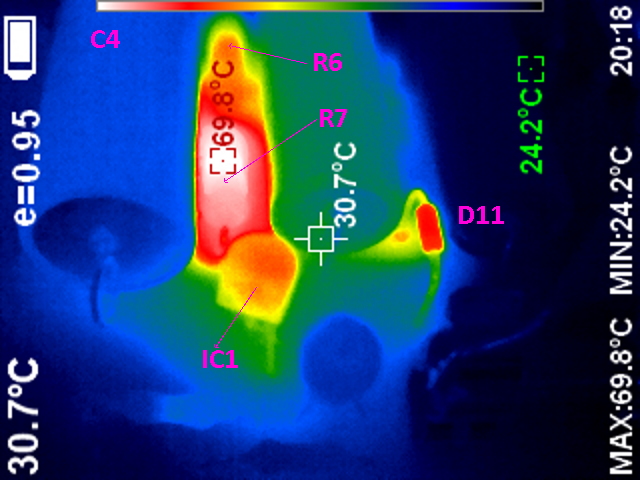

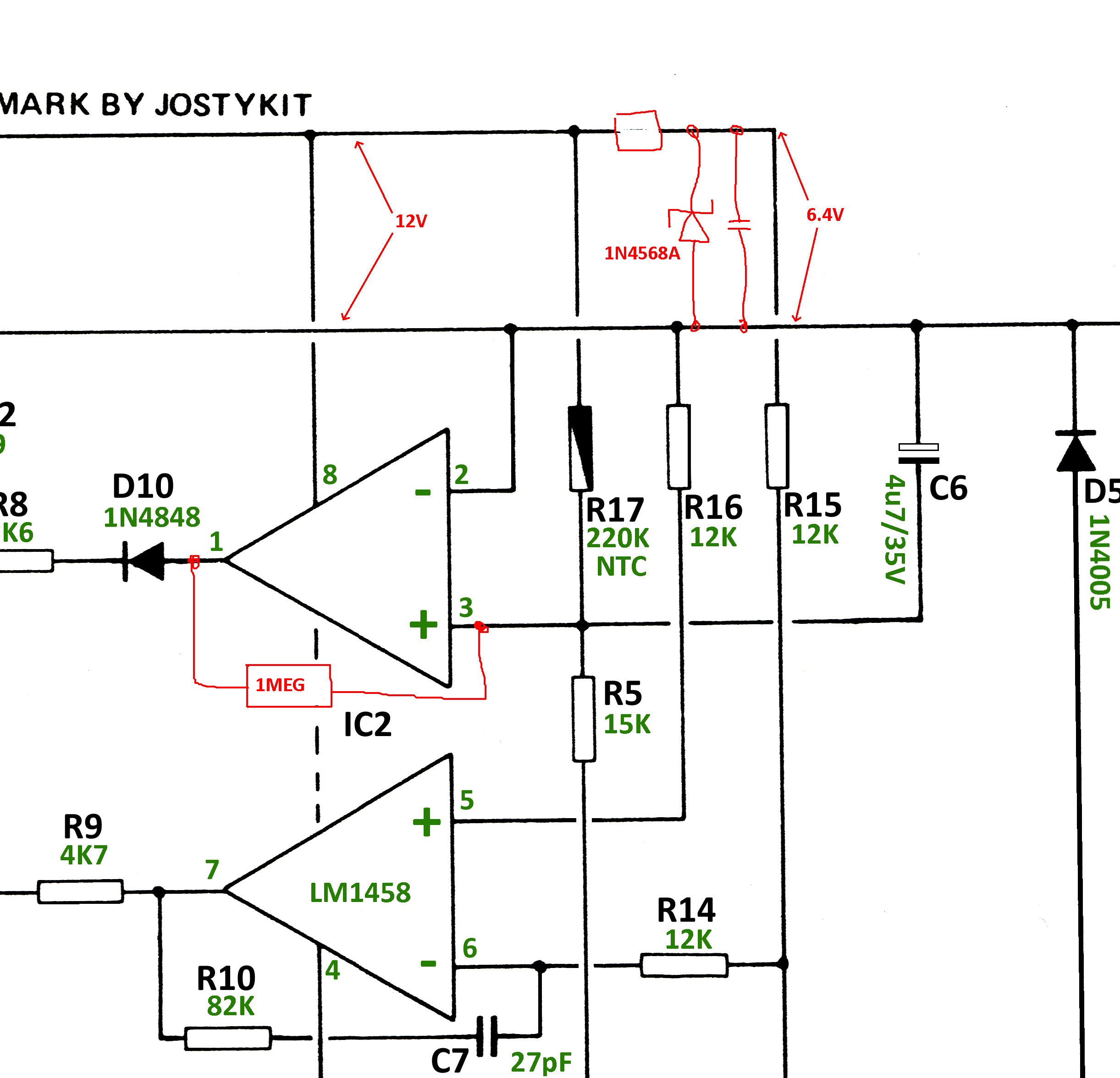

nt400_fix-idea.png this will fix : stability, temperature dependent voltage, and over temperature lock needs hysteresis
updated 2022, OZ2CPU
