Power Supply 25A Linear

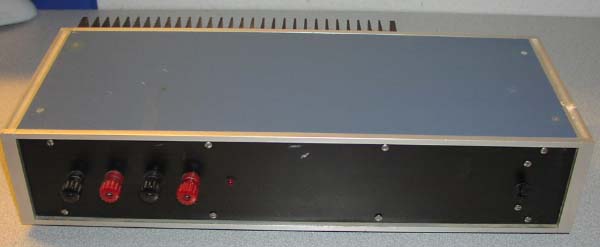

This DC Power Supply was build meny years ago by me
Single output fixed voltage 14.0 Volt, 25 A continius.

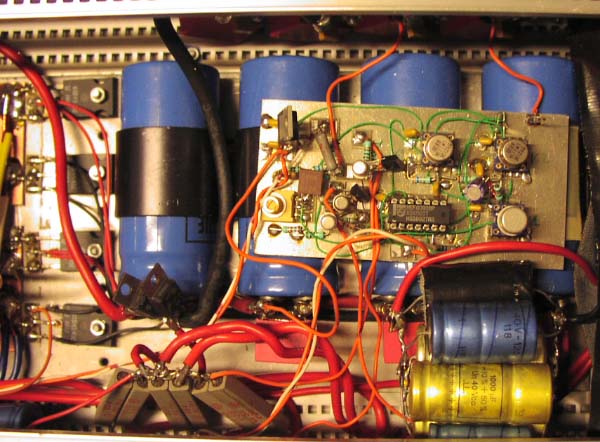

It has a home designed lo-noice opamp regulator, and a special shortcircuit protection system.

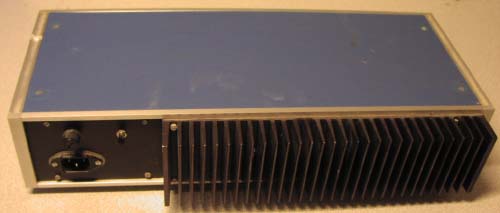

It is also over temperature protected.

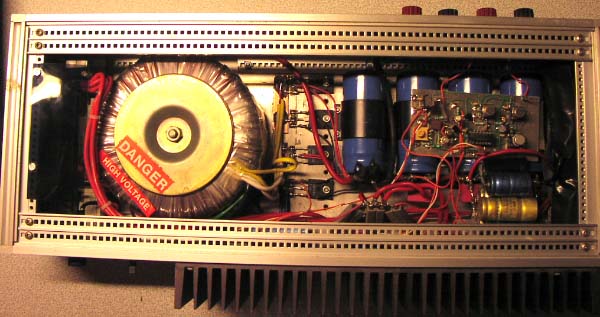

The four retifier diodes are big shotkey types.
