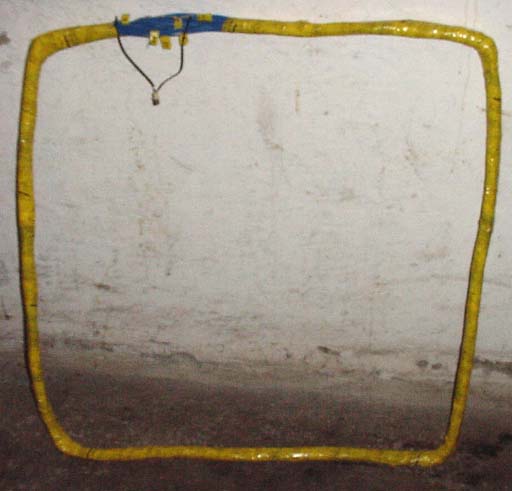

137 Khz Big Coil Antenna

100 Meter 0.75mm2 solid cobber wire is used
How to wind a coil this big ?? Use a piece of your wife funiture to wind it arround

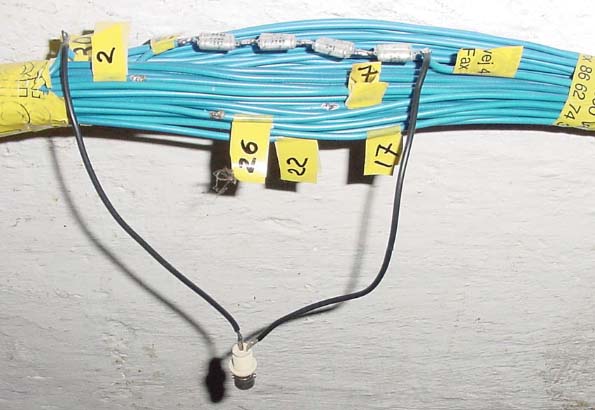

I had to make several tappings to find the right drive inpedance
Note the resonans capasitors in series and parallel, this is made to get higher voltage and higher power handling
