The End HIFI Power Amp.

"The End" power amp is a construction found in a magazine, sorry I dont remember the name
So I did not invent eny of the electronics inside this box...

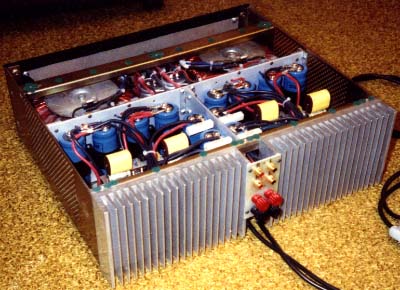

The hardware was constructed big and heavy !

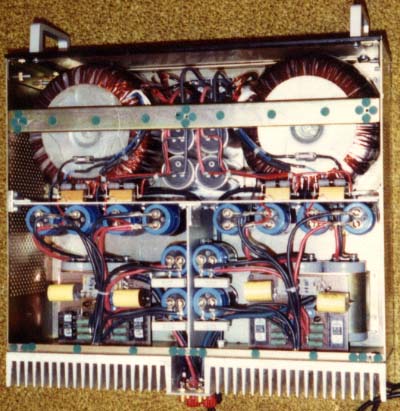

Note the 3 rooms for best shilding. Due to the huge inrush current I had to use seperate powercords so that my main fuses did not blow
Powerup sequence: plug in left 230 Volt AC power cord wait 4 sec.. Plug in right channel.. Enjoy...

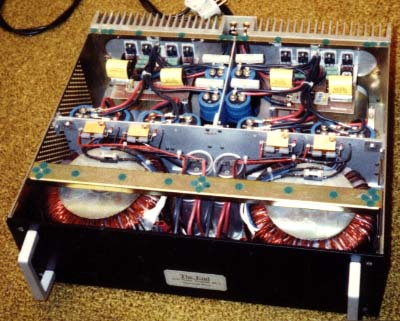

The two transformators is 2200 VA each !!, I hand-winded both. What a big job..
