Robot 100kg the jeep, Power Supply Distribution Panel Fuses Meters

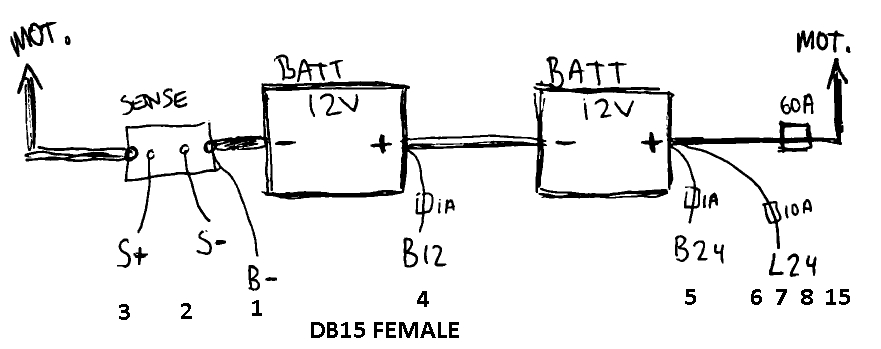

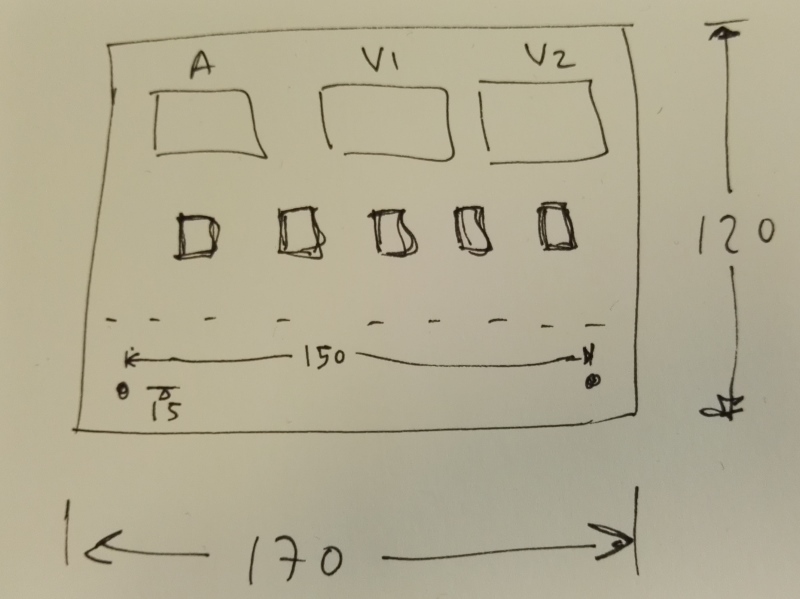

power_20181023_160603.jpg - just a quick remember all important measurements and design idea

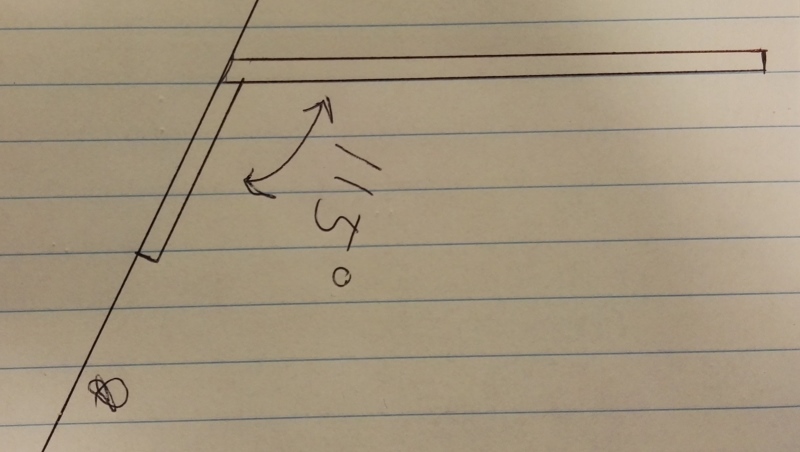

power_20181026_171532.jpg - how much to bend the panel plate

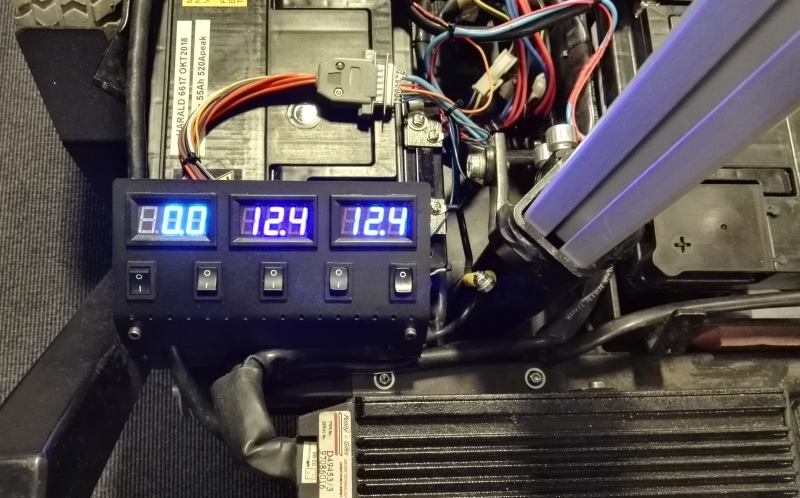

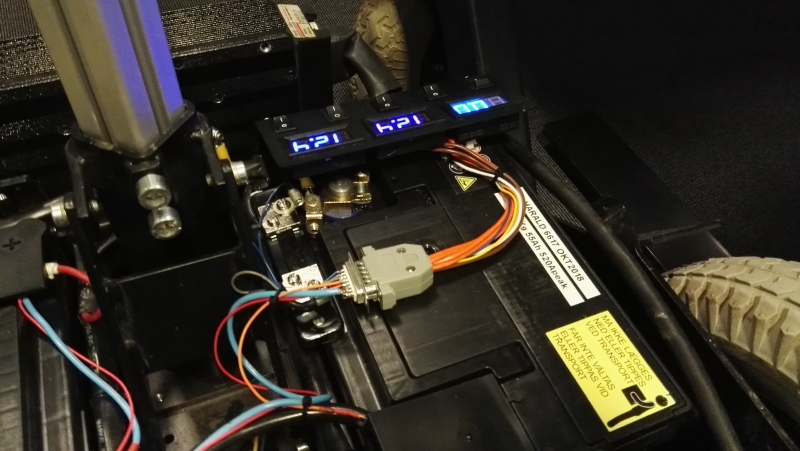

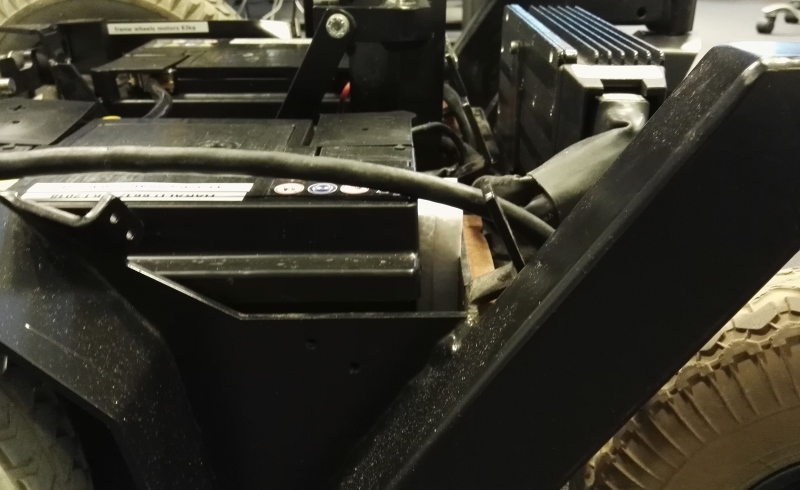

power_20181026_171543.jpg - it is mounted on the two available fixtures
power_2018_corel_panel_design.jpg - easy to design front plates in coreldraw

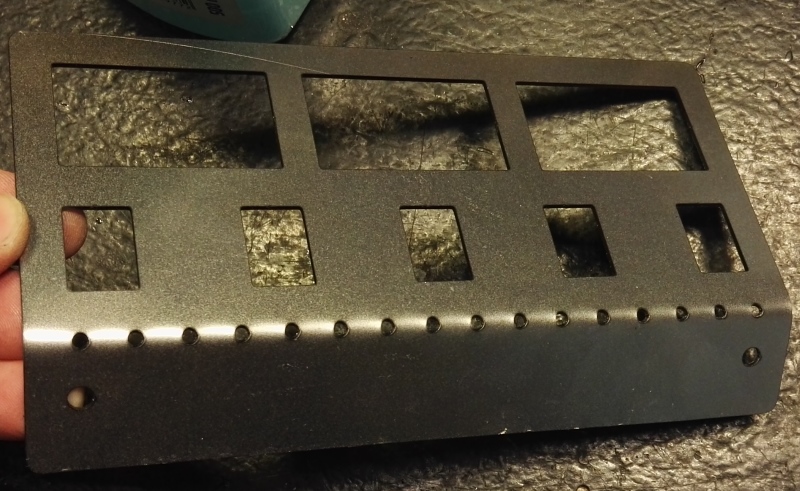

power_20181206_214550.jpg - Laser cut 1mm sheet iron plate

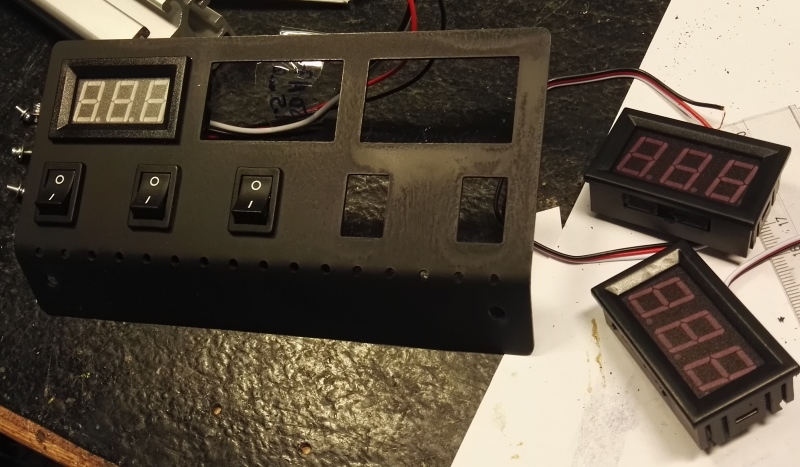

power_20181207_225750.jpg - just some paint and ready to assemble

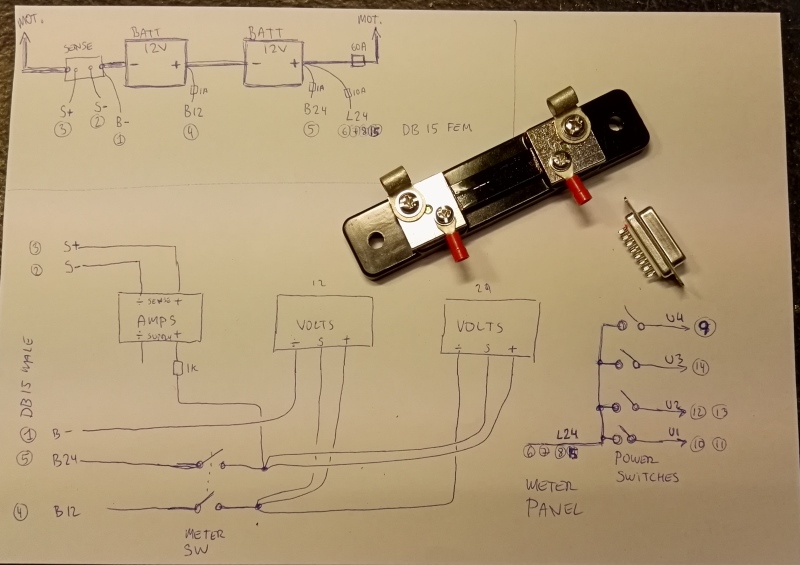

power_20181211_201518.jpg - the current sense shunt needed for this amp meter must be 50A = 75mV (1.5mOhm)
