MY little Radio Control page
Current NEW versions
Thomas Scherrer OZ2CPU UHF RC system version 3, LRS, long range, OLD VERSIONS
OLD VERSIONS INFORMATION
Transmitter board inside the case, version 3.32
The transmitter board is 45x68mm.
Possibility for more output power:
Safety ! fly using the low power setting, and in case loss of signal activate the powerup feature
The unit is shipped with a 3 way switch so the user can fast and easy change the level while flying
0.5W / 1W / 2W power out, the 2W setting is ONLY for short time rescue opperations
RF Power output: 0.5W or 1W or 2W use selectable
Supply Voltage : 6-25V using internal switchmode converter
Supply current : depends on input voltage, input supply power is 3-4 times of RF output power
Spurs : 40dB under carrier
Temperature range: -40C to +70C tested
more pictures see here : 3 - 4
The new PRO version
WARNING FUTABA owners must read post 1573-1574

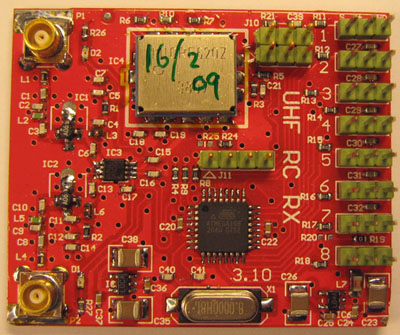

Receiver 3.00 and 3.10 (old version, sold out now)
The receiver board is 45 x 54mm, weight: 12 gr.
Receiver with DIVERSITY ! and LNA Low Noise Amplifier, uptimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.
Two MCX connector coax dipole wire antennas come with each RX this type.
Sensitivity: -112dBm
Input voltage range: 4-6V
Servo signal pulse output: 3.3V positive
Radio band: 433 & 444Mhz multi band and multi frequency hopping system.
Temperature range: -40C to +70C tested
Price 100 $ as long as stocked.

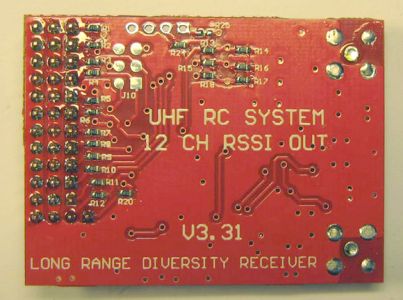

Receiver 3.31 LR Long Range Diversity (sold out)
The receiver board is 40 x 54mm, weight: 12.7 gr.
Receiver 12ch with DIVERSITY ! and LNA Low Noise Amplifier, uptimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.
Two MCX connector coax dipole wire antennas come with each RX this type, weight 5.4 gr each
the extra pin in ch 12 connector is rssi out, ch 12 connector is also ppm out when < 12ch are used
PPM out is the same as sum-signal and this is offcourse fully compatible with mikrocopter controller board, all RX have this.
Servo pins how to connect explained see this so you connect it all right.
Sensitivity: -112dBm
Input voltage range: 4-6V
Servo signal pulse output: 3.3V positive
Radio band: 433 & 444Mhz multi band and multi frequency hopping system.
Temperature range: -40C to +70C tested
Price 140 $

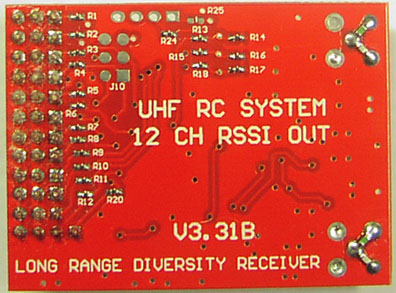

Receiver 3.31B LR Long Range Diversity, (sold out 2009)
Improved input filter, now even better attenuation for 900 - 1300 - 2400 video transmitters, virtually impossible to jamm.
Improved distance of the servo connectors, now all 12 can be mounted at the same time and no bending or problems.
The receiver board is 40 x 54mm, weight: 12.7 gr.
Receiver 12ch with DIVERSITY ! and LNA Low Noise Amplifier, uptimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.
Two MCX connector coax dipole wire antennas come with each RX this type, weight 5.4 gr each
the extra pin in ch 12 connector is rssi out, ch 12 connector is also ppm out when < 12ch are used
PPM out is the same as sum-signal and this is offcourse fully compatible with mikrocopter controller board, all RX have this.
Servo pins how to connect explained see this so you connect it all right.
Sensitivity: -112dBm
Input voltage range: 4-6V (rx uses 61mA at 5V)
Servo signal pulse output: 3.3V positive
Radio band: 433 & 444Mhz multi band and multi frequency hopping system.
Temperature range: -40C to +70C tested
Price 140 $
more pictures see here : filter1 - filter2 -
331 vs 331B 1 - 331 vs 331B 2 - 331 vs 331B 3

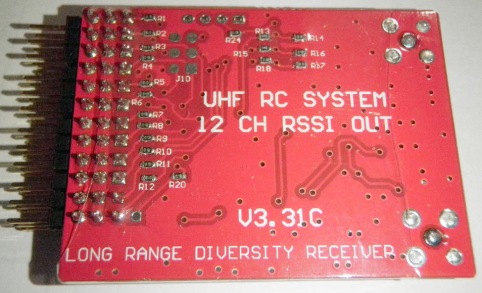

Receiver 3.31C LR Long Range Diversity,(sold out start of 2010)
Improved input filter, now even better attenuation for 900 - 1300 - 2400 video transmitters, virtually impossible to jamm.
Improved distance of the servo connectors, now all 12 can be mounted at the same time and no bending or problems.
The receiver board is 40 x 54mm, weight: 12.7 gr.
Receiver 12ch with DIVERSITY ! and LNA Low Noise Amplifier, uptimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.
Two MCX connector coax dipole wire antennas come with each RX this type, weight 5.4 gr each
the extra pin in ch 12 connector is rssi out, ch 12 connector is also ppm out when < 12ch are used
PPM out is the same as sum-signal and this is offcourse fully compatible with mikrocopter controller board, all RX have this.
Servo pins how to connect explained see this so you connect it all right.
Sensitivity: -113dBm to -114dBm IMPROVED NEW LNA with less noise factor
Input voltage range: 4-6V (rx uses 128mA at 5V)
Servo signal pulse output: 3.3V positive
Radio band: 433 & 444Mhz multi band and multi frequency hopping system.
Temperature range: -40C to +70C tested
Price 140 $
DOCUMENTATION
MANUAL ENGLISH old software pre feb 2009
MANUAL ENGLISH HARDWARE 3.00 and 3.10 Manual about all hardware related things, March 20 2009
MANUAL ENGLISH HARDWARE 3.30 RX 3.31 RX Manual about all hardware related things, April 24 2009
MANUAL ENGLISH HARDWARE 3.30 RX 3.31B RX 3.32TX New Manual about all hardware related things, June 22 2009
MANUAL ENGLISH SOFTWARE 307 New Manual about all software features, February 25 2009
MANUAL ENGLISH SOFTWARE 308 New Manual about all software features, March 15 2009
How to bootload/upgrade firmware of UHF RC TX and RX unit 3.00 and 3.10
How to bootload/upgrade firmware of UHF RC TX and RX unit 3.30 and 3.31
